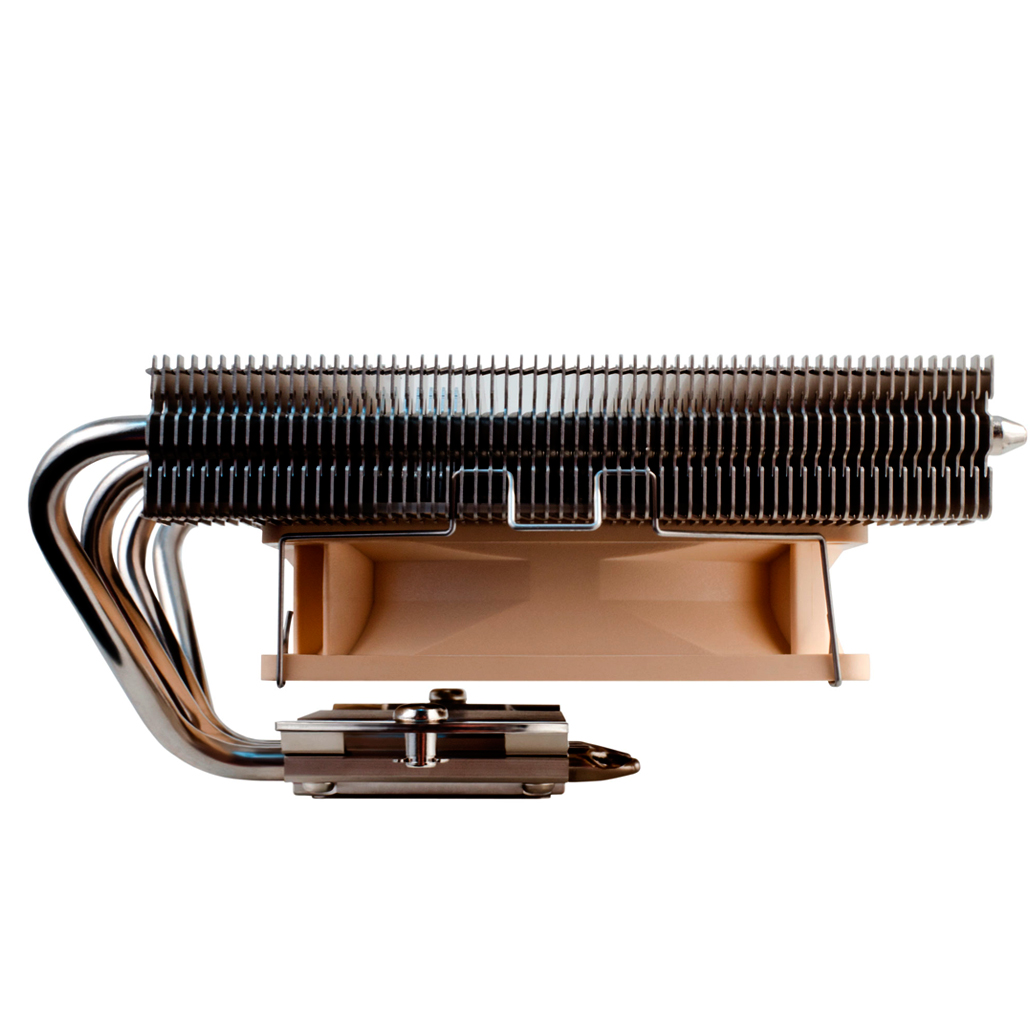

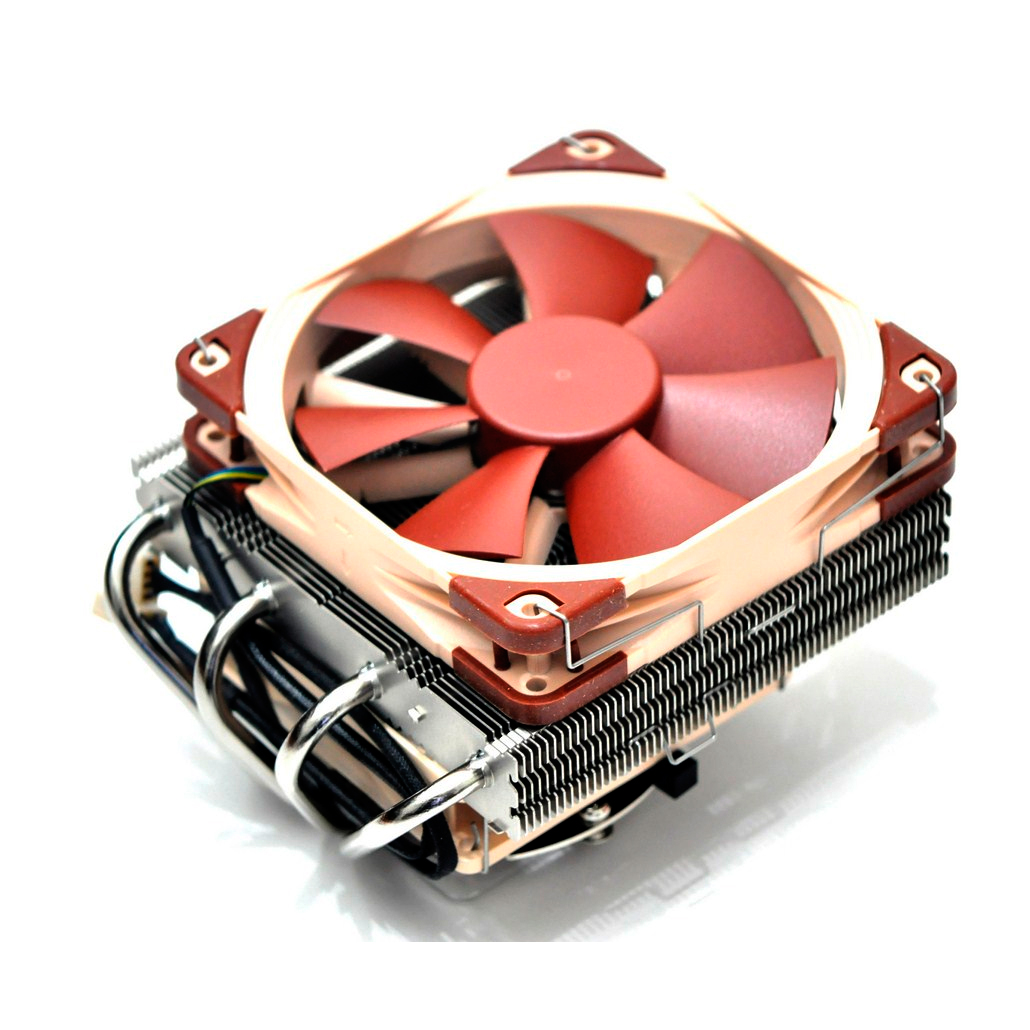

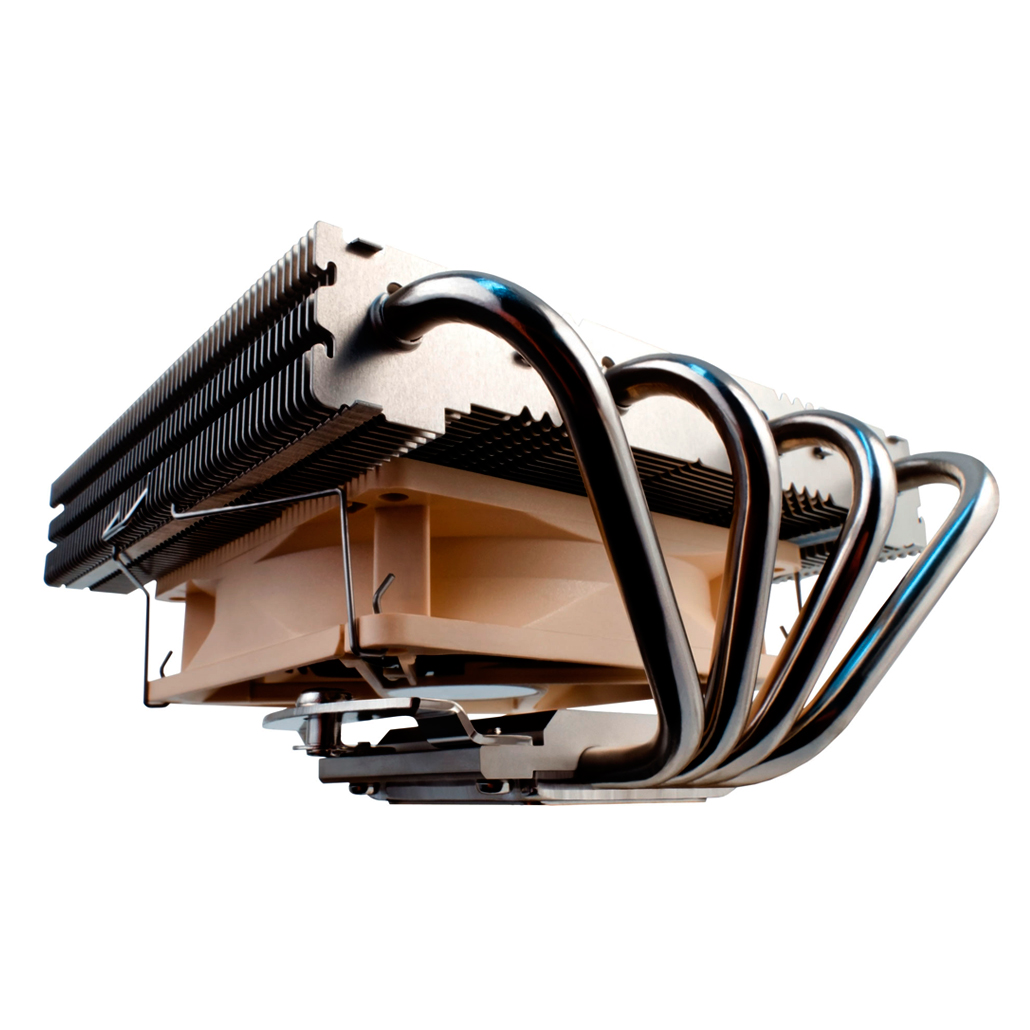

Noctua NH-L12 Cpu Cooler
Brand
Product Code
NH-L12
Main Features
1366, 1156, 775, AM2+ 1pcs 12CM , 9CM fan
Noctua NH-L12 Cpu Cooler
Recommended by more than 150 leading international websites and magazines, Noctua’s NH-U12P series has become a benchmark in premium quality quiet cooling. The new NH-U12P SE2 now comes with two NF-P12 fans for further improved performance and adds support for LGA1156/1155/1150 as well as LGA1366 via the latest SecuFirm2™ multi-socket mounting system. Topped off with Noctua’s award-winning NT-H1 thermal compound, the NH-U12P SE2 forms a complete quality package that continues the NH-U12P series’ legacy of superb quiet cooling performance.
Due to its custom backplate, the NH-U12P SE2 is not compatible with Intel’s Xeon 5500 platform. Please choose our NH-U12DX 1366 for use on Xeon 5500 systems.
Award-winning NH-U12P Heatsink
The NH-U12P SE2 is built around Noctua’s premium quality NH-U12P heatsink that is renowned for its excellent quiet cooling performance and has received more than 150 awards and recommendations from leading international websites and magazines.
SecuFirm2™ multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA1150, LGA775, AM2, AM2+, AM3, AM3+, FM1, FM2) and meets the highest demands in safety, performance and ease-of-use.
2x NF-P12 Premium Fan
Including two of Noctua’s award-winning NF-P12 120mm fans with Low-Noise and Ultra-Low-Noise-Adaptors, the NH-U12P SE2 offers full flexibility in fine-tuning the cooler for supreme quietness and maximum performance in push-pull mode.
NT-H1 Thermal Compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Special Edition Premium Kit
Bundled with a tube of NT-H1, two exquisite NF-P12 fans and the new SecuFirm2™ multi-socket mounting system, the NH-U12P SE2 forms a complete premium quality package that’s backed up with 6 years manufacturer’s warranty and contains everything you need in order to achieve superb quiet cooling performance.
| Socket compatibility | Intel LGA2011 (Square ILM), LGA1366, LGA1156, LGA1155, LGA1150, LGA775 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required) |
| Height (without fan) | 66 mm |
| Width (without fan) | 128 mm |
| Depth (without fan) | 150 mm |
| Height (with fan) | 93 mm |
| Width (with fan) | 128 mm |
| Depth (with fan) | 150 mm |
| Weight (without fan) | 415 g |
| Weight (with fan) | 680 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 120x120x25mm & 92x92x25mm |
| Scope of Delivery |
|
| Warranty | 6 Years |
| Fan specifications | |
| Model | Noctua NF-F12 PWM & Noctua NF-B9 PWM |
| Bearing | SSO-Bearing |
| Max. Rotational Speed (+/- 10%) | 1500 / 1600 RPM |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1200 / 1300 RPM |
| Min. Rotational Speed (PWM) | 300 / 300 RPM |
| Max. Airflow | 93,4 / 64,3 m³/h |
| Max. Airflow with L.N.A. | 74,3 / 52,6 m³/h |
| Max. Acoustical Noise | 22,4 / 17,6 dB(A) |
| Max. Acoustical Noise with L.N.A. | 18,6 / 13,1 dB(A) |
| Input Power | 0,6 / 0,96 W |
| Voltage Range | 12 V |
| MTBF | > 150.000 h |
