- Patented multiple support pressure vault bracket system, allow users adding pressure to the bracket system (40~70 lbs.),and have a more efficient and secure mounting. (1366/1156/775) .
- Fanless design for low-noise operation .

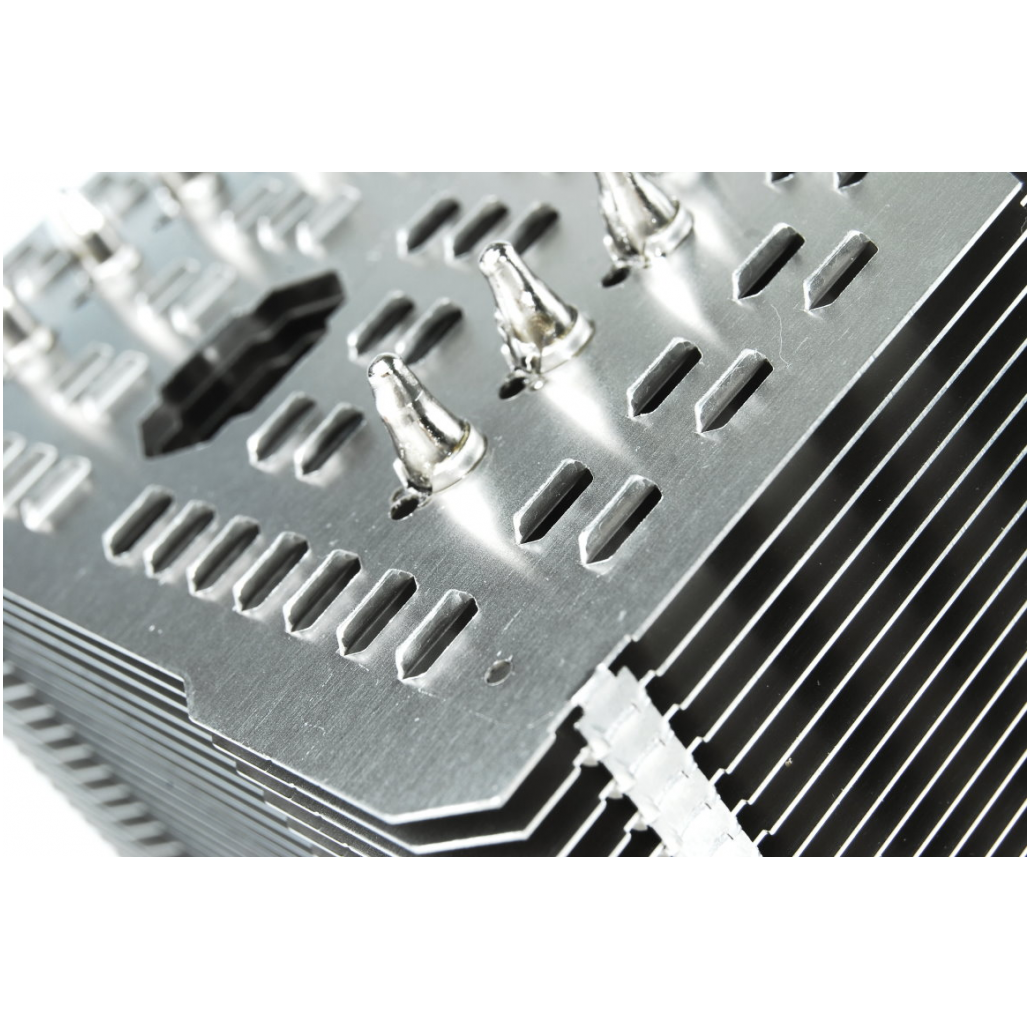

- Proprietary through holes on fins for efficient ventilation .
- Heatsink are all nickel plated to ensure the best quality and performance and could last for years .
- Soldered heatpipes, copper base and fins, to ensure the best thermal conducting efficiency .
- Six sintered heatpipe design, all heatpipes are nickel plated.
- To slow the oxidation deterioration to the heatpipe, to ensure longer usage and performance of the heatsink for the cpu.
- Including 120*25mm fan clips & 140*25mm fan clips and Chill factor III thermal paste .
- Convex copper base design, to ensure the Highest thermal conducting thermal efficiency between the cpu and the heatsink .
Technical Spec :
Compatible with Socket 1366/1156/775 Socket AM2/AM2 (optional)
Size: Length 110mm x Width 140mm x Height 160mm
Weight: 860 g (excluding fan and bracket system)
Heatpipe: 6mm sintered heatpipe *6 units
Copper base: C1100 pure nickel plated copper base
