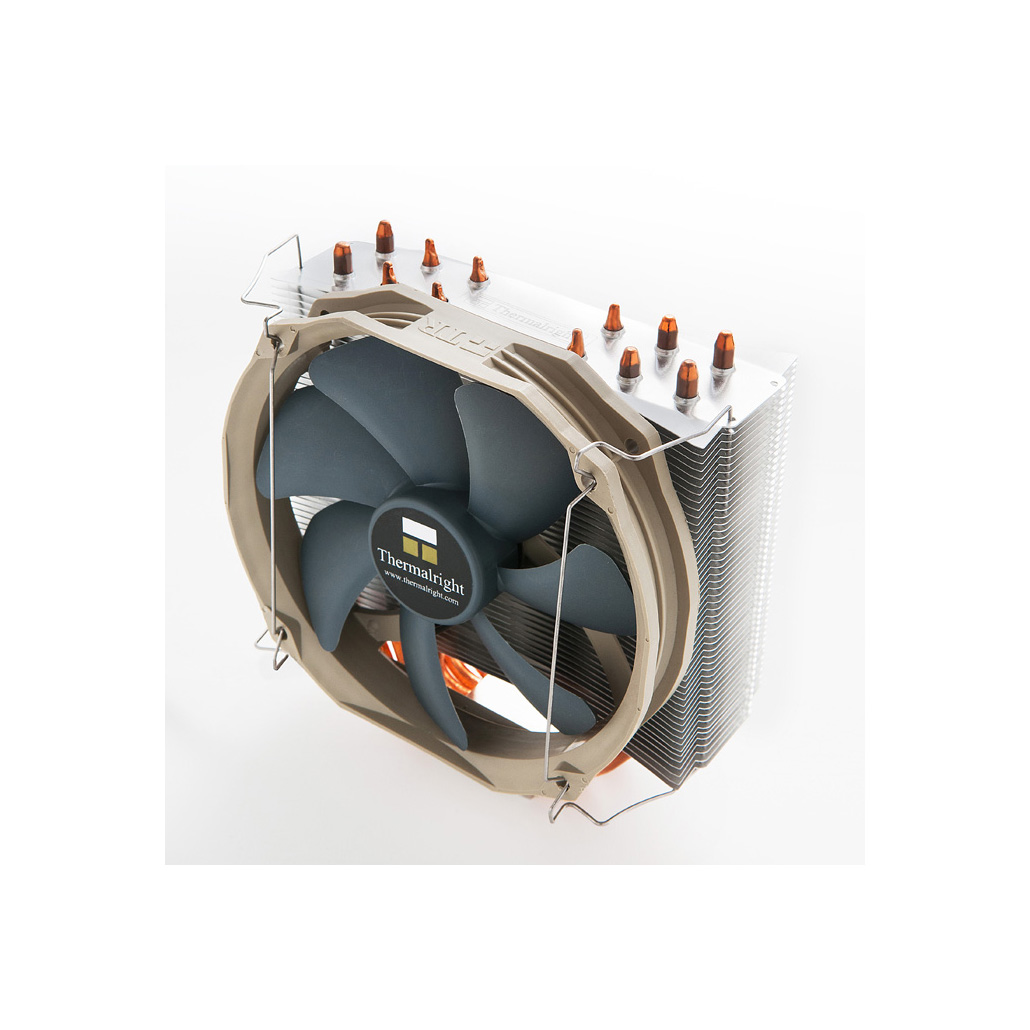

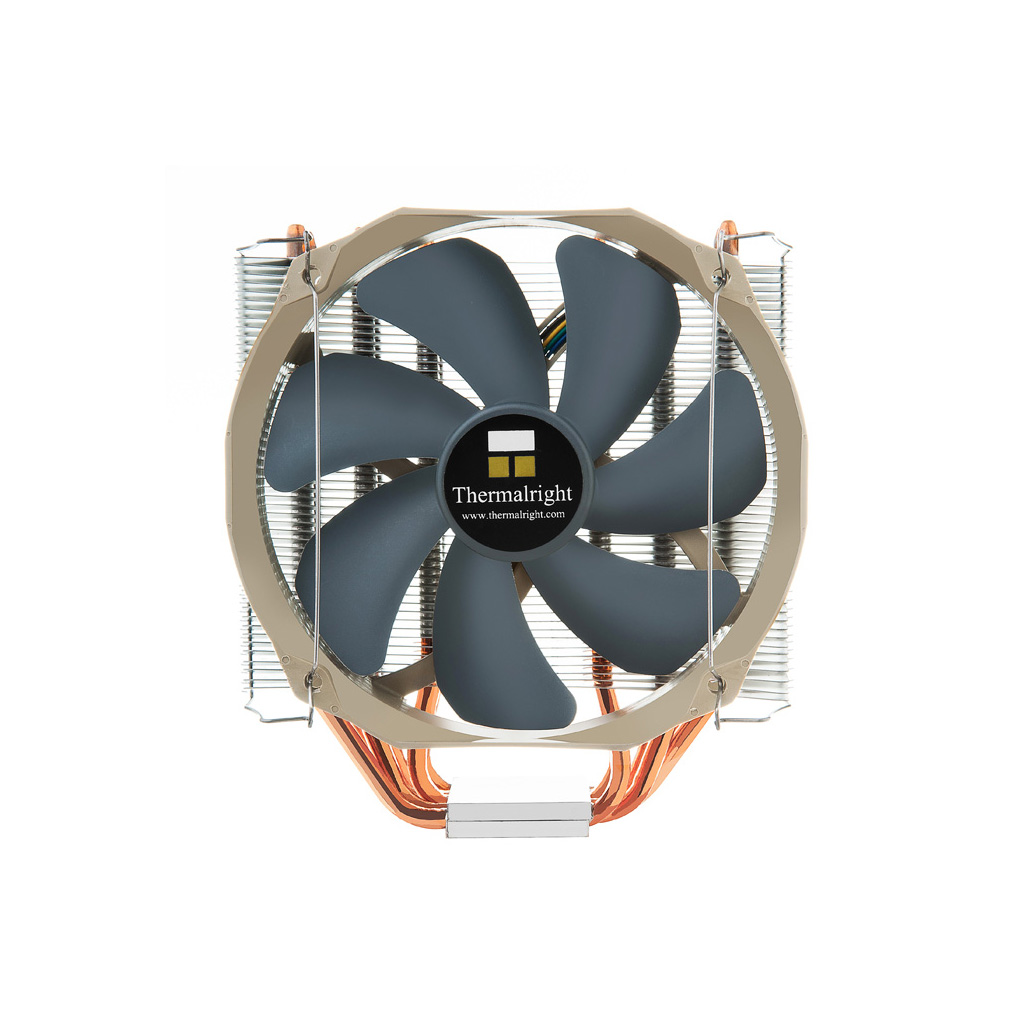

Thermalright TRUE Spirit 140

Brand
Kode Produk
TRUE Spirit 140
Data Produk
Motherboard Compatibility
Intel: Socket LGA 775/1150/1155/1156/1366/2011
AMD: Socket AM2/AM2+/AM3/AM3+/FM1/FM2

Deskripsi

Special features:

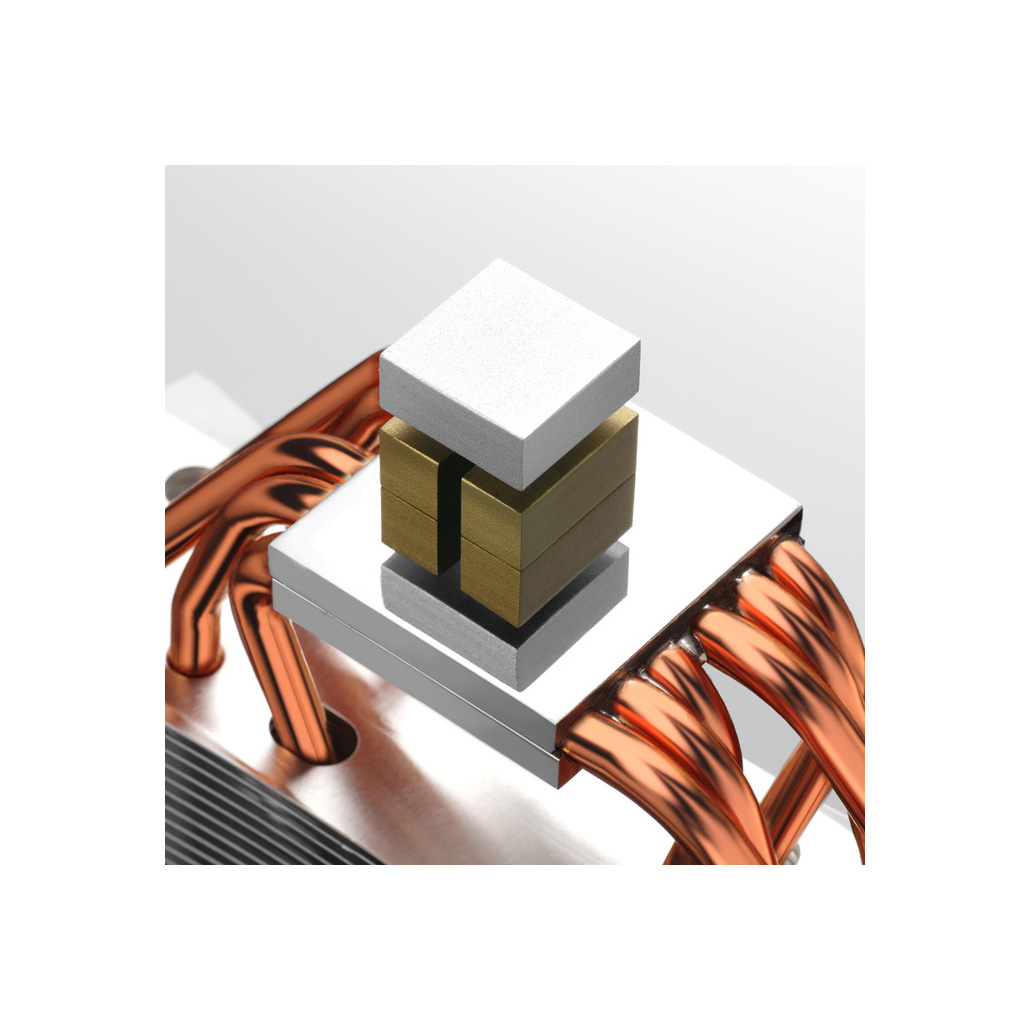

ULTRA style heatsink fin array, with copper base, elevates heatsink’s overall quality.
Large heatsink fin array, provides dissipating area of up to 150*125mm, make complete use of the airflow, with 140mm or 120mm fan.
With the max width of 55mm, tall memory spreaders are avoided.
Support Multiple-Platforms.
Includes one Thermalright TY-140 PWM fan, Ultra low noise at 21 dBA at max rpm (50cm testing distance)
Fan-clips are compatible with both 140mm and 120mm fan.

Detail

Technical Spec :

Heatsink Specifications: Dimension: L155 mm x W53.4 mm x H170 mm Weight: 605g Heat pipes: 6mm heatpipe x 6 units Fin: T = 0.4 mm ; Gap = 2.0 mm Fin Pcs: 44 + 6 = 50 pcs Copper Base: C1100 Pure copper nickel plated Motherboard to Fin: 39 + 8 = 47 mm

TY-140 FAN Spec Dimension: L152 mm x H140 mm x W26.5 mm Weight: 160g Rated Speed: 900 – 1300 RPM Noise Level: 17 – 21dBA Air Flow: 28.3 – 73.6 CFM Connector: 4 Pin (PWM Fan connector)
