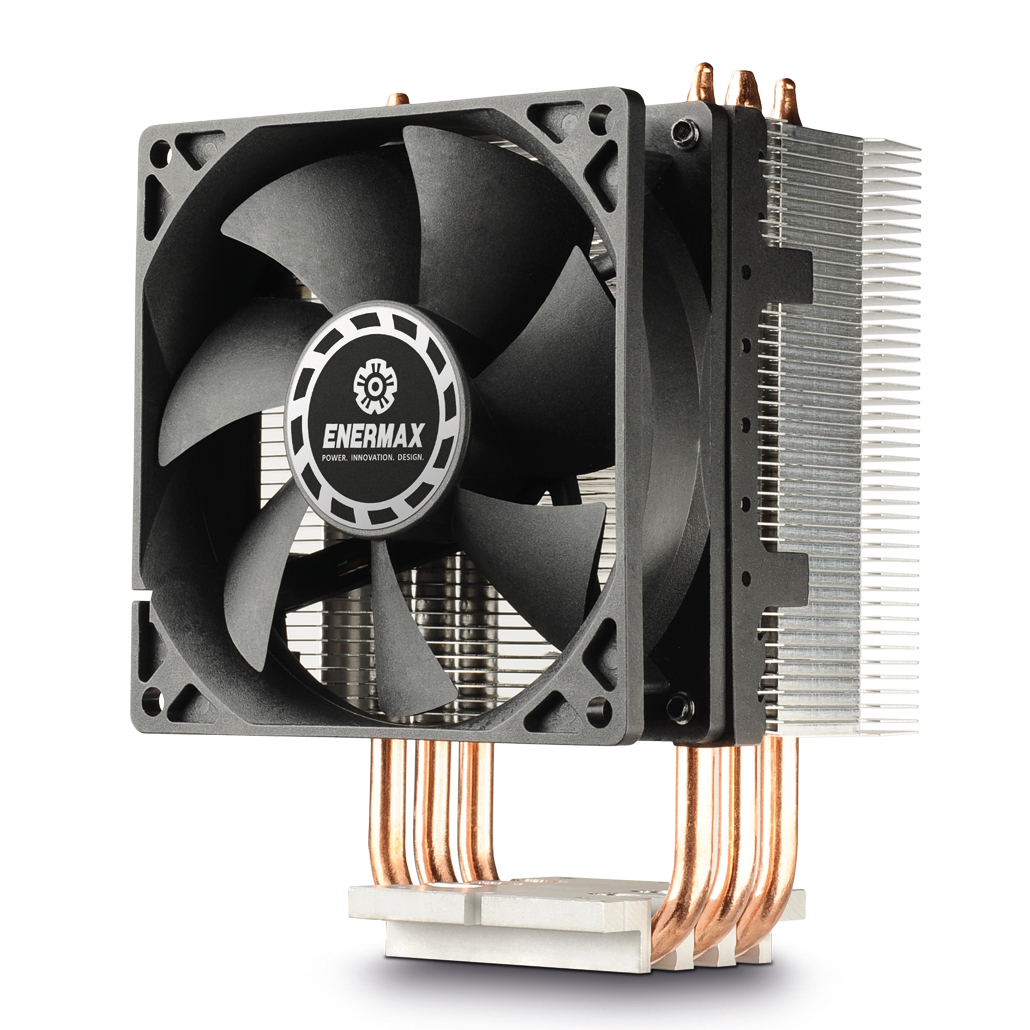

Enermax ETS-N30 HE

with High-efficient 9cm fan no LEDs

Overview

The ultra-compact 92mm Enermax ETS-N30 HE cooler provides outstanding cooling for your CPU with the acoustics of a whisper. It delivers an enhanced heat transfer and an optimized airflow, thanks to the unique Stack Effect Flow (SEF) and Vacuum Effect Flow (VEF) innovations. The HDT (Heat-pipe direct touch) technology provides rapid thermal conduction and eliminates CPU hot spots. The user-friendly ETS-N30-TAA CPU cooler is also easy to install.

Product Information

Models

Enermax ETS-N30 HE with High-efficient 9cm fan no LEDs

Cooling

Side-Flow
Compact CPU cooler with 9cm PWM fan and three 6mm high-performance heat pipes.
Optimized Air Stream Conduction
Enhanced heat transfer and optimized airflow due to patented aerodynamic innovations: Stack Effect Flow (SEF) and Vacuum Effect Flow (VEF).
Heat Pipe Direct Touch (patented)
The heat pipes rest directly on the CPU, so that the heat can be dissipated more effectively without additional resistance.

Fan

Easy Fan Installation
User-friendly fan bracket for “One Click” fan installation: Screw the fan to the bracket and fix it with a “Click” at the heat sink.
Twister Bearing*
Smooth running and persistent silent 9cm PWM fan with patented Twister Bearing Technology (min. 100,000 hours MTBF).
*only ETS-N30-TAA
Eye Catcher
ETS-N30-TAA with blue T.B.Apollish Advance LED fan. Patented circular LED light with 9 diodes and Sparkle effect.
Click Mechanism*
Fan with detachable blades for easy cleaning from dust.
*only ETS-N30-TAA

Comfort & Compatiblity

Compact Size
Slim and performance-capable CPU cooler for systems with limited space.
Universal bracket for Intel® and AMD®
User-friendly mounting system supports all Intel® and AMD® CPU: Intel® 775/1150/1155/1156/1366 and AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+.
Effective Vibration Reduction
Adhesive rubber strips to reduce vibrations of the installed fan.
High-Conductive Thermal Grease
Quality Dow-Corning® thermal grease (TC-5121) for best thermal conduction between CPU and heat sink.

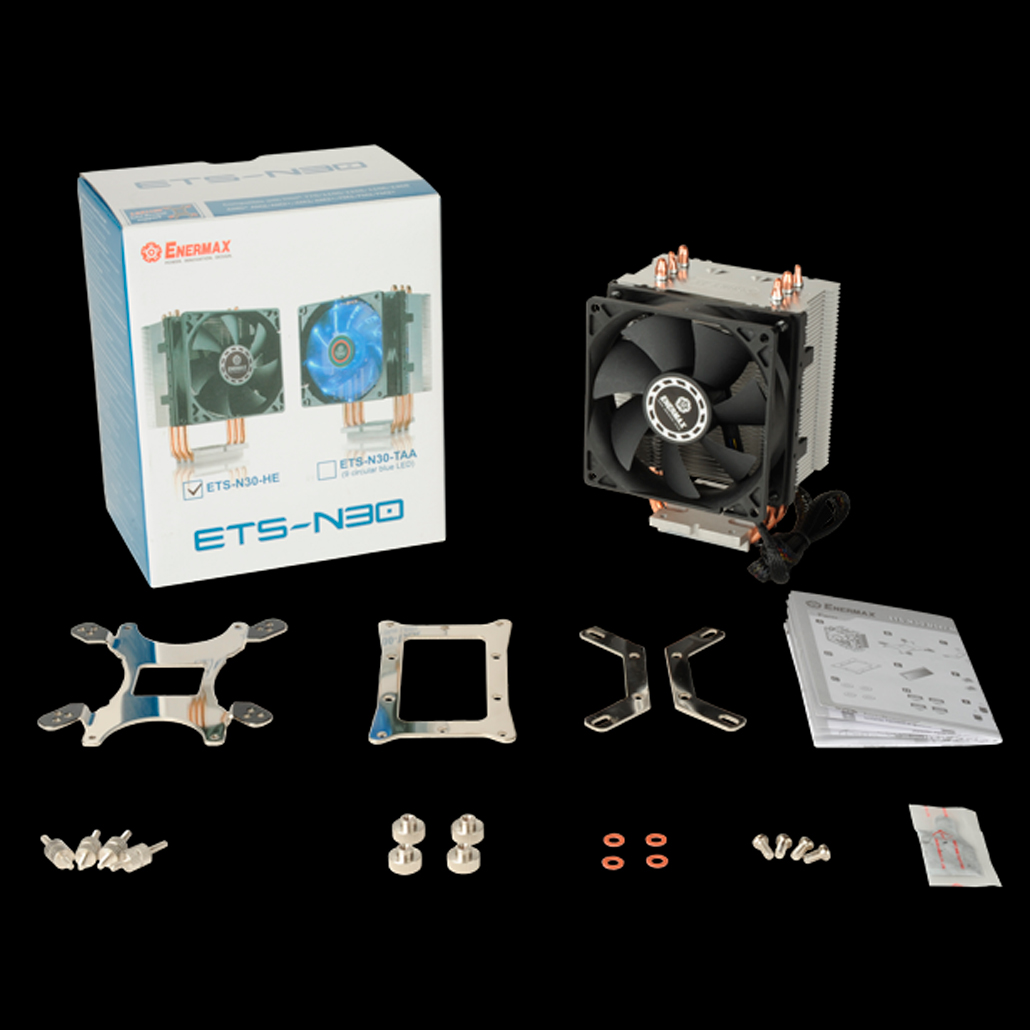

Accessory

1x CPU Cooler ETS-N30-HE/-TAA
1x T.B.Apollish Advance blue 9cm PWM fan (only ETS-N30-TAA)
1x High-efficient 9cm PWM fan (only ETS-N30-HE)
1x Back plate
4x Plastic washers
4x Screw pillars
2x Bracket mounts for Intel® CPU
1x Bracket mounts for AMD® CPU
4x Nuts for bracket mounts
2x Fan brackets
4x Fan screw
4x Anti-vibration rubber strips
1x Thermal grease
1x Installation guide

Specifications

Models	ETS-N30-HE	ETS-N30-TAA
Compatible Sockets	Intel® LGA 775/1150/1155/1156/1366 AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Overall Dimensions (mm)	L 92 x W 79 x H 134
Heat Sink Dimensions (mm)	L 92 x W 50 x H 134
Number / Thickness of Heat Pipes	3 x Ø 6mm
Weight (without fan)	290g
Material	Copper Heat Pipes / Aluminium Fins
Thermal Grease	Dow Corning® TC-5121
TDP	150W

Fan
Fan Model	High Efficiency	T.B.Apollish Advance
Fan Dimensions (mm)	92 x 92 x 25
Fan Speed (RPM)	800 – 2,800
Air Flow (CFM)	15.9 – 55.4	14.5 – 50.8
Static Pressure (mm-H2O)	0.36 – 4.37	0.32 – 3.86
Noise Level (dB(A))	16 – 28	16 – 27
Rated Voltage (V)	12
LED	no LEDs	Patented circular LED light with 9 blue diodes
Fan connector	4 pin PWM
Fan Mounting	1-clip fan bracket

Dealer Information

	ETS-N30-HE	ETS-N30-TAA
EAN Code	4713157733795	4713157733801
PU – Dimensions (mm)	590 x 308 x 366
PU – Net Weight (kg)	12.1
PU – Gross Weight (kg)	16.7
Pieces / PU	24

Features

STACK EFFECT FLOW (SEF)

Stack Effect Flow (SEF) – patented
The Stack Effect is a natural, physical phenomenon: Warm air is rising up because of its lower density and leaves a low pressure behind that in turn pulls cool air. Four openings in the middle of the heat sink make use of this effect. They interrupt the air stream so that the warm air gains space to escape. The heat dissipation can be accelerated.

VACUUM EFFECT FLOW (VEF)

Vacuum Effect Flow
Also the third innovation makes use of a physical effect. The best example to explain this effect is a moving car: It pushes air aside as it goes down the road and leaves a low pressure. Air from the sides will be sucked in to compensate the difference in pressure. According to that, the CPU cooler sides are not fully closed, so that cool air can be sucked into the heat sink.

HEAT PIPE DIRECT TOUCH (HDT)

Heat Pipe Direct Touch – patented
Heat Pipe Direct Touch means that the heat pipes rest directly on the CPU. It has the unquestionable advantage against a base plate, that it transfers the heat effectively without any additional resistance straight to the heat pipes.

TWISTER BEARING TECHNOLOGY (only ETS-N30-TAA)

Minimal contact area
For an effective noise reduction

Rotor with integrated magnet
For a frictionless and smooth motion

Self-lubricating bearing sleeve
Abrasion protection for a longer lifetime

	Twister Bearing Technology (patented)
	Persistent low noise level
	Longer life: up to 100.000 hours MTBF
	Magnetized steel ball
	Self-lubricating nano bearing
	Coils
	Flexible magnets inside the rotor
