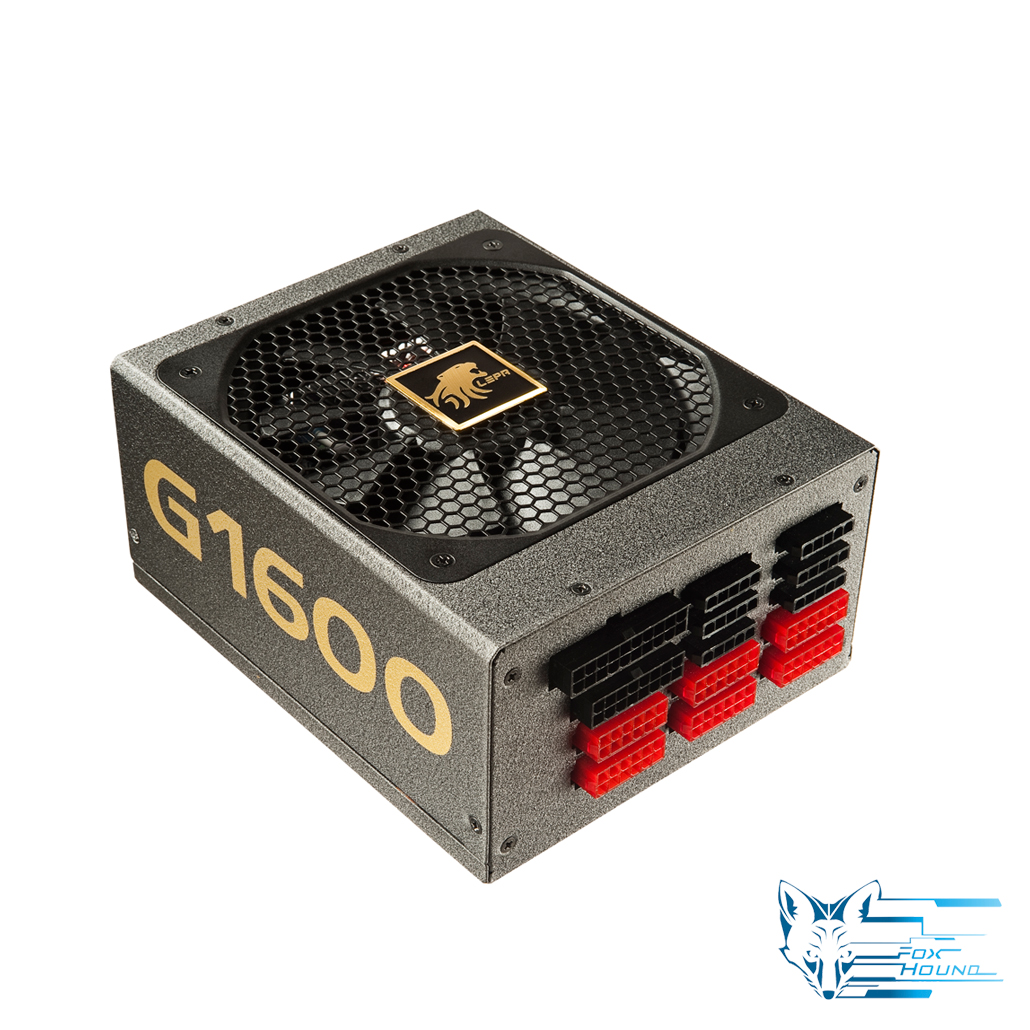

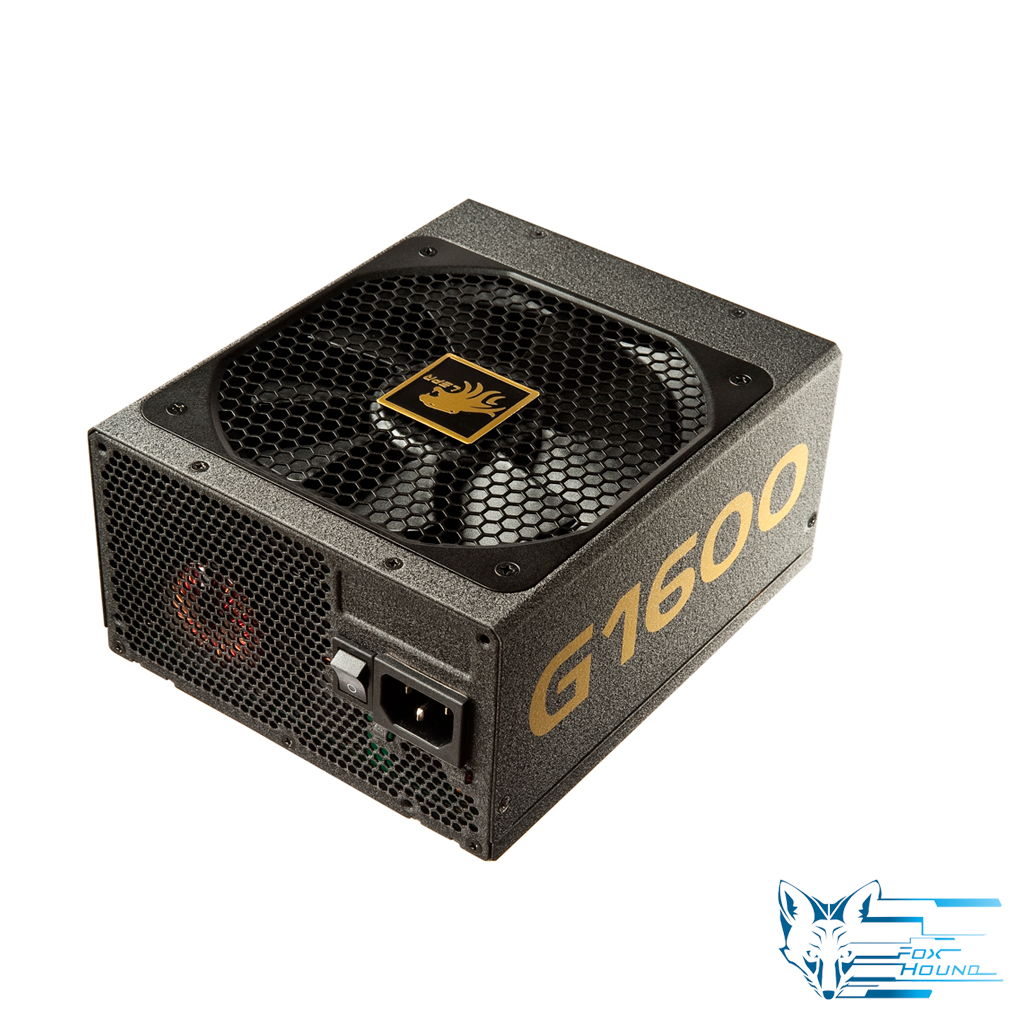

Lepa G-1600 MA EU
Small size, big Power
Overview
The LEPA G1600 MA EU embodies high standards in performance, efficiency and reliability. Perfect for multi-GPU systems, heavy-duty workstations, servers, and industrial PCs, the LEPA G1600 is built to satisfy the enthusiasts’ ultimate needs. To handle systems which are demanding and power hungry, the G1600 is equipped with high quality, durable components, and advanced technologies. The G1600, at only 7in. (18cm) in depth, features Full Bridge and Zero Voltage Switch (ZVS) topologies, not only reducing energy loss during transmission, but also maximizing efficiency – up to 93%. Its six powerful +12V rails with high maximum loads provide great compatibility with high-end graphics cards. Last but not least, the hassle-free fully modular cable management facilitates system upgrades and replacements.

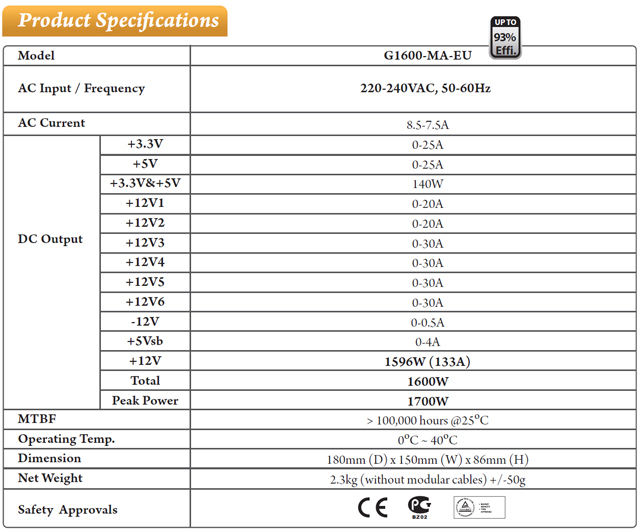

- Powerful 1600W fully rated output
Peak power up to 1700W. - Surpassing 80 PLUS® Gold level

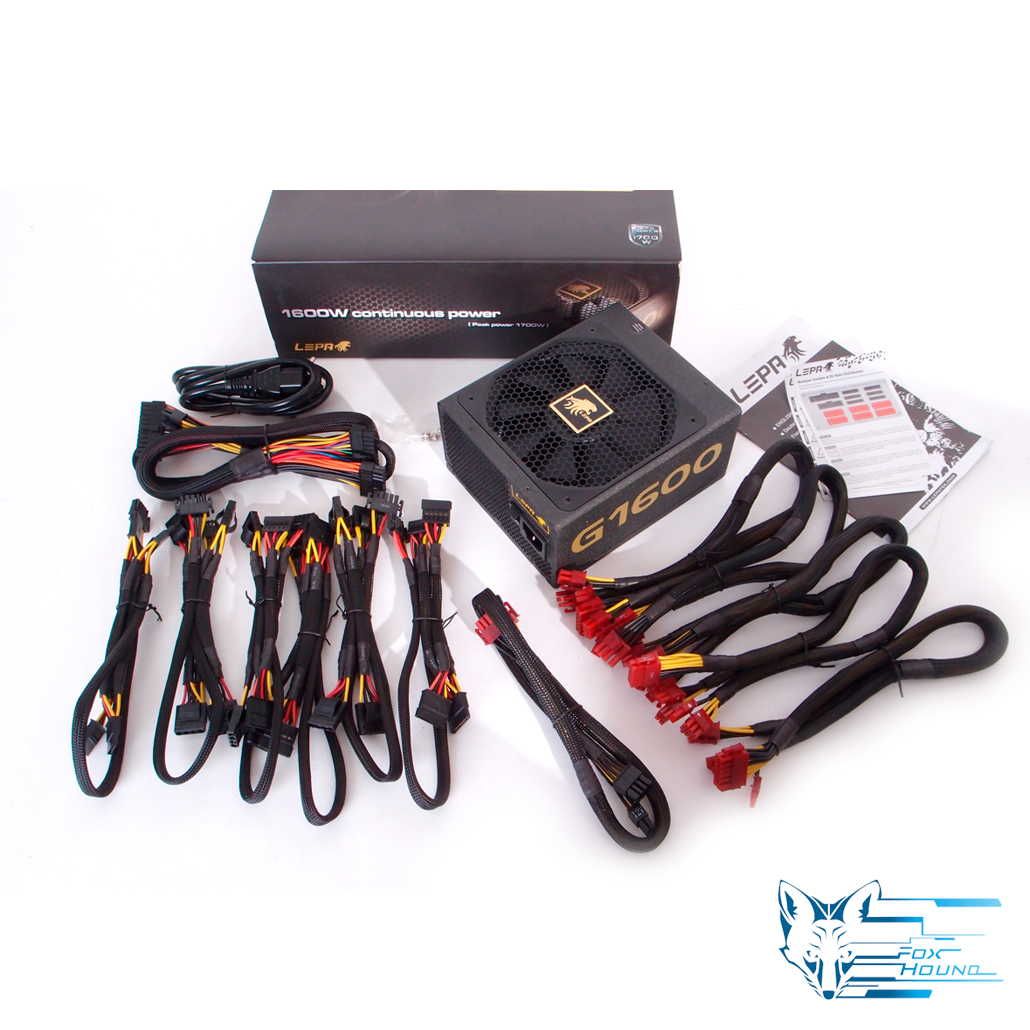

This PSU is designed for 220-240VAC operation, so that it does not comply with 80 PLUS® test procedure (at 115VAC). Therefore it is not certified by 80 PLUS®, even if it even succeeds the requirements of 80 PLUS® Gold. - Full Modular Cabling Design

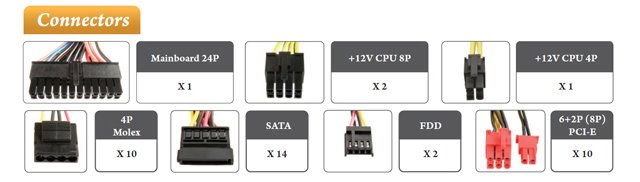

makes system upgrade and replacement easy. - High Density PCB Design
Only 18cm in depth, providing more space to dissipate the heat inside the chassis. - Thermal Fan Control
135mm ball bearing fan with thermal programmed speed controller delivers silent, cool operation. - Honeycomb-shaped Ventilation Design
increases airflow and keeps the power supply cool. - Durable Components
Solid State Capacitors and 105°C Japanese Grade A Capacitors provide great reliability. - DC-to-DC Converter Design
ensures system stability. - Full Bridge and Zero Voltage Switch (ZVS) Topologies
provide superior performance and reliability. - Dual Sided PCB Design

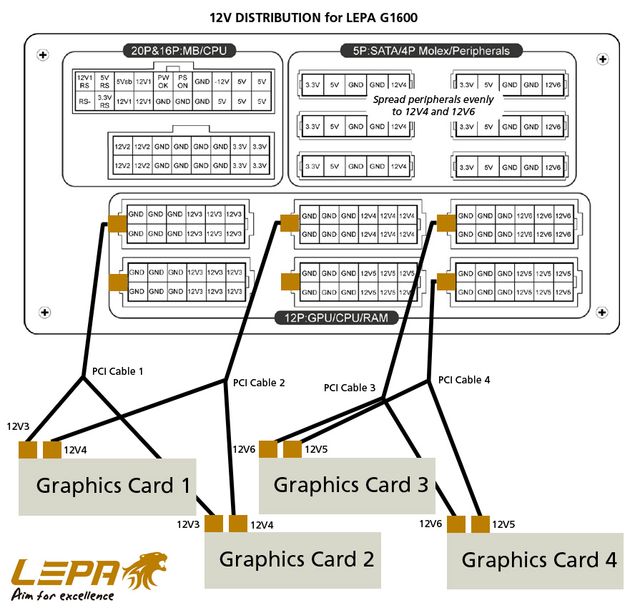

synergizes PCB layout. - Six powerful +12V rails
with separated over current protection (OCP) for maximum safety and high performance capability to power overclocked systems, heavy-duty graphics cards and strong CPU. - Multi-GPU Support
Ability to run up to 4-Way GPU (SLI / CrossFireX) and Dual CPUs together without difficulties. - ErP Lot 6
Compliance with EU ErP Lot 6 standards (lower than 1W system power consumption at standby mode in combination with ErP Lot 6 ready mainboard). - Advanced Protection Circuit
Over Power, Over Voltage, Under Voltage, Over Current, Over Temperature, Short-circuit protection provide great safety to your system. - ATX12V & EPS12V
Compliant with latest standards for desktop and server PSU: ATX12V v2.3 and EPS12V v2.92. - 5 Years Manufacturer Warranty
PERFORMANCE FIGURES
Efficiency & Noise Level
The LEPA G1600 complies with the requirements of the latest EU regulation for computer systems No. 617/2013 (valid from 1st of July 2014).
| 10% Load at 230VAC | 20% Load at 230VAC | 50% Load at 230VAC | 100% Load at 230VAC | ||||||
| Effic. | dB(A) | Effic. | dB(A) | Effic. | dB(A) | Effic. | PF | dB(A) | |
| G1600-MA-EU | 89% | tba | 92% | tba | 93% | tba | 90% | 0.99 | tba |
Effic. = Efficiency | PF = Power Factor

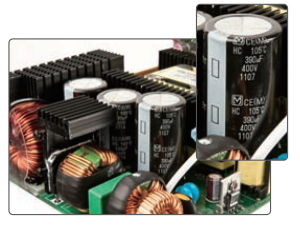

Solid State Capacitors and 105°C Japanese Grade A Capacitors
Over Power, Over Voltage, Under Voltage, Over Current, Over Temperature, Short-circuit protection

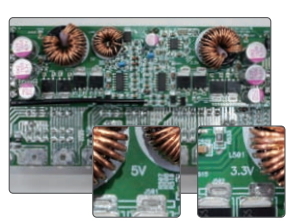

DC-to-DC Converter Design
