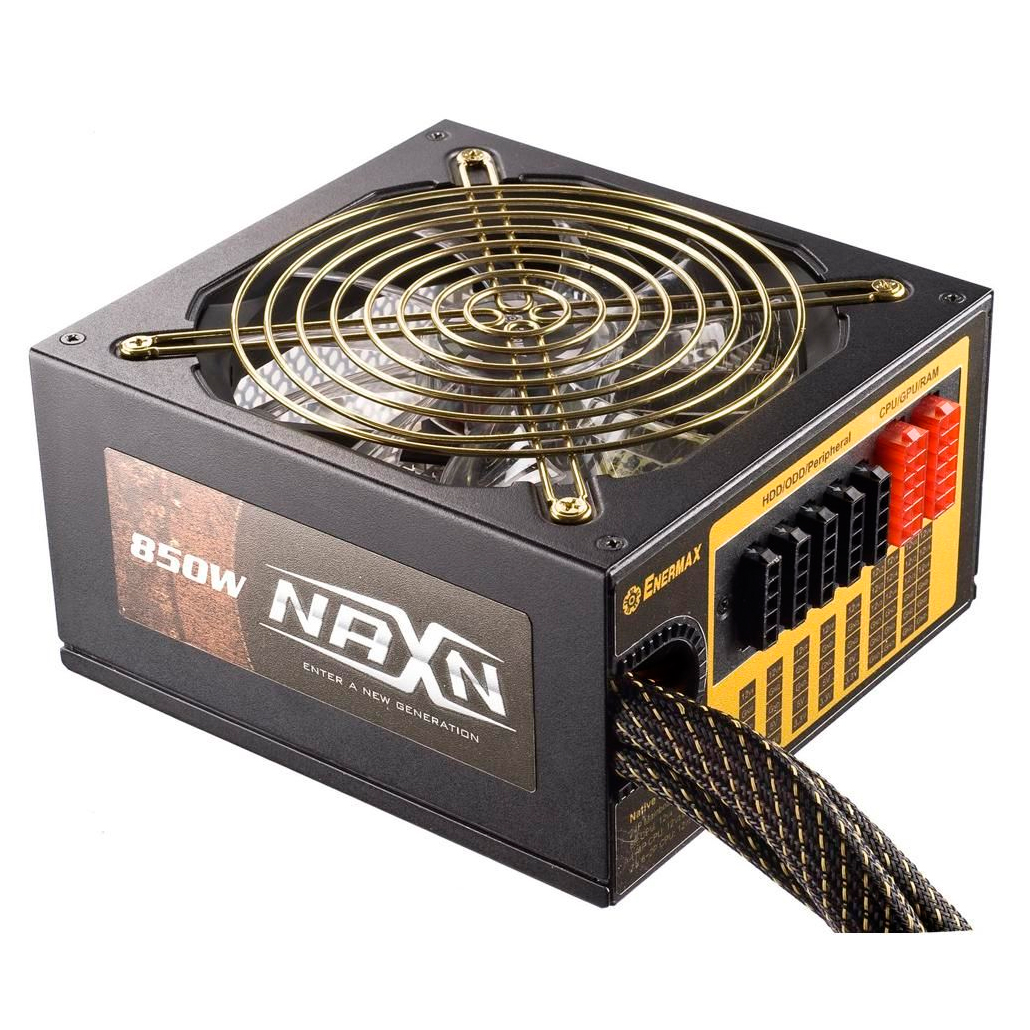

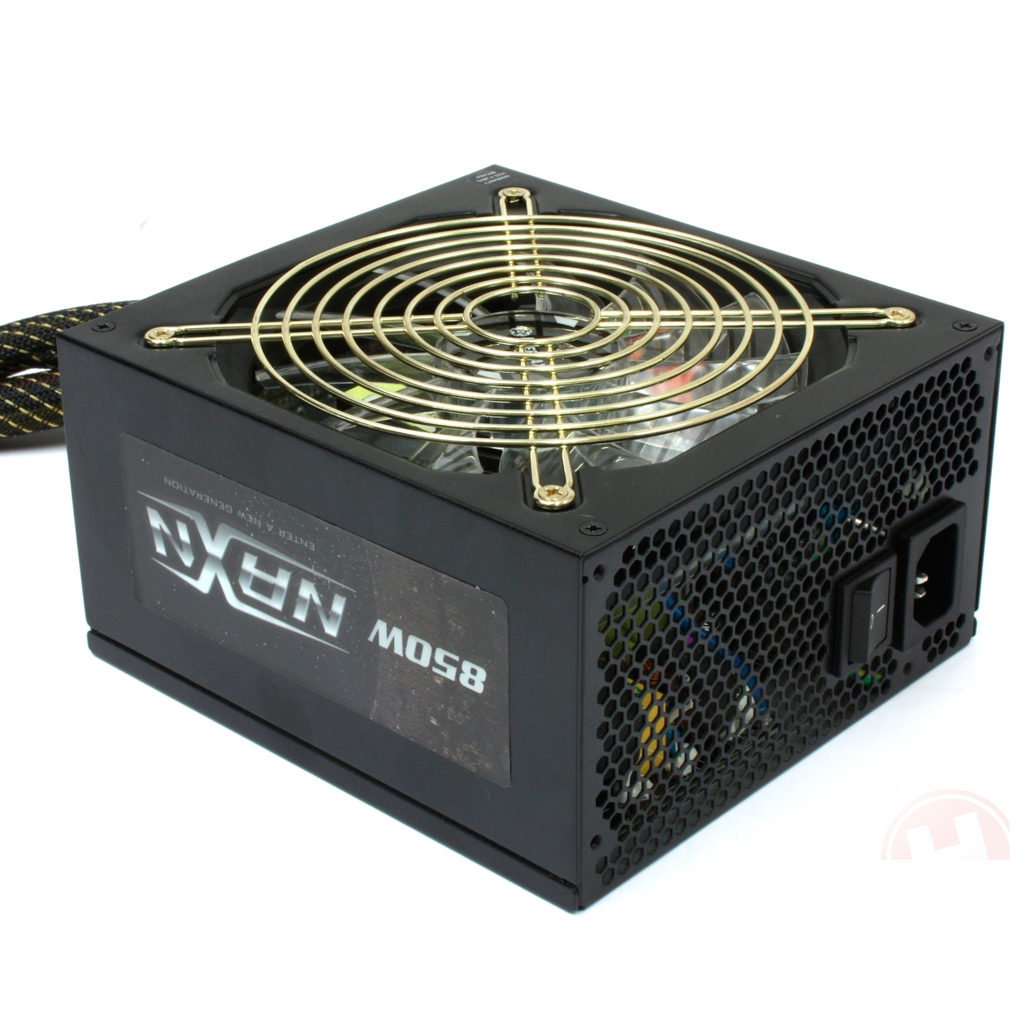

ENERMAX NAXN 82+ 850W
82PLUS ready!
82-88% efficiency @ 20-100% load. Compliant with 80 PLUSR Bronze efficiency requirements.
DXXI ready!
100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
FUTURE ready!
12P modular socket design for possibly upcoming new CPU¡¦s and graphics 10 and/or 12P connectors
HeatGuard
Keep PSU fan running for 30-60 seconds after shutdown to dissipate the remaining system heat and prolong system lifetime
SafeGuard
Multiple protection circuitry of OVP, UVP, SCP, OPP, and SIP protect your system.
GAMING ready!
ATX12V v2.3 support for latest Intel® Core™ 2 Duo/Quad/Extreme/i7/i5, and AMD® Athlon™ 64X2 & Phenom™ II and CrossFireX™.
SILENT ready!
Ultra silent 13.5cm fan with intelligent RPM control guarantees cool performance and silent operation.
24/7 ready!
High-Quality components and dual 12V rails design enable non-stop usage with stable and reliable current.
WORLD ready!
100-240VAC in with automatic adjustment and active PFC for global usage.
AC Input | |||||||||
Input Voltage | 100-240VAC, 47-63Hz | ||||||||
Input Current | 10A(750W), 11A(850W) | ||||||||
DC Output | |||||||||
Rails | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | -12V | +5Vsb | Total Power |
ENM750AWT | 22A | 22A | 35A | 35A | – | – | 0.3A | 3A | 750W |
130W | 648W (54A) | – | – | 3.6W | 15W | ||||
ENM850EWT | 28A | 30A | 20A | 20A | 30A | 30A | 0.8A | 3A | 850W |
180W | 750W (62.5A) | 9.6W | 15W |
