Noctua NF-R8 Fan
Brand
Product Code
NF-R8
Main Features
premium 8Cm Fan
Details

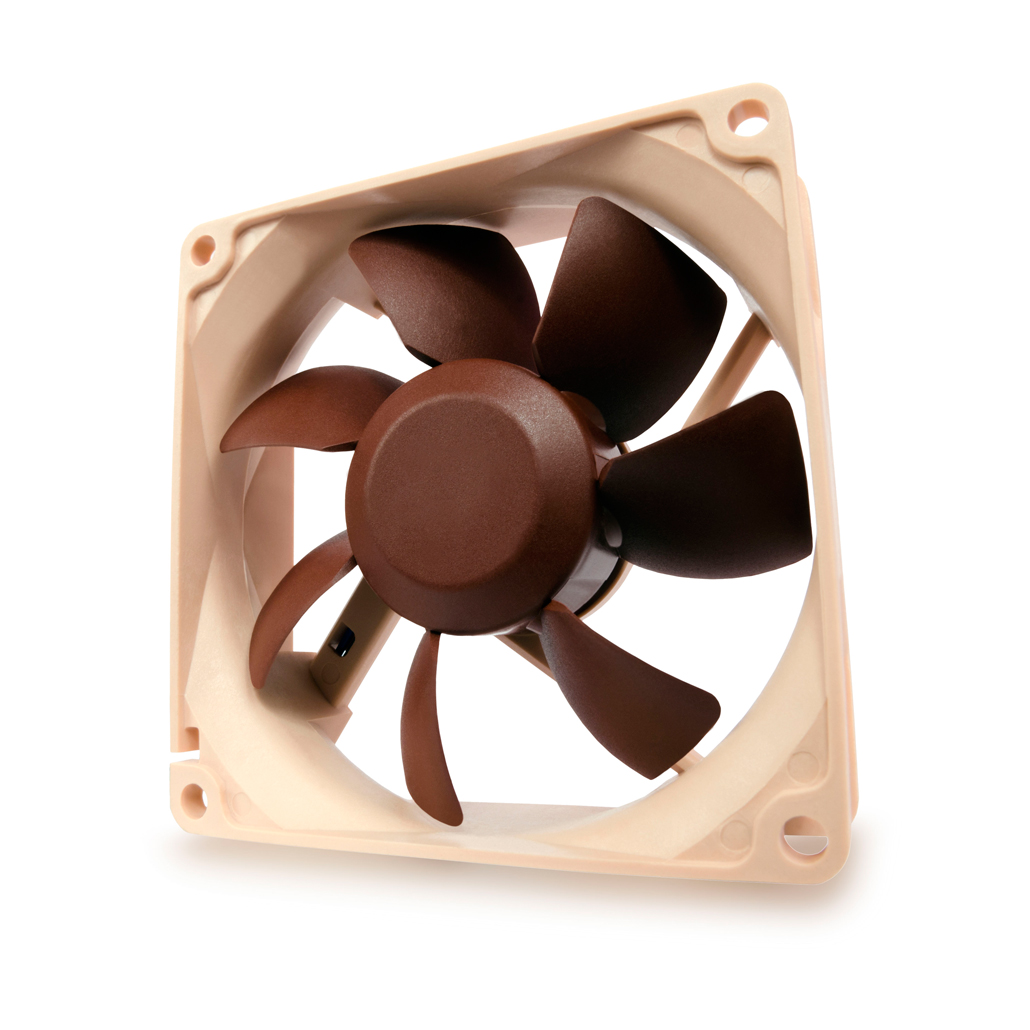

Noctua Fan NF-R8
Sound-optimised blade geometry and profile: The NF-R8 is the first fan employing a novel 80mm rotor which was developed by the Austrian Institute for Heat-Transmission and Fan Technology (Österreichisches Institut für Wärmeübertragung und Ventilatorentechnik, ÖIWV). Thanks to the special optimisation of the blade geometry towards ultra low noise application, the NF-R8 is up to 10% more quiet than current high-end fans at the same flow rate.
Self-stabilising oil-pressure bearing (SSO bearing): The NF-R8 series are equipped with a magnetically centred, self lubricating oil-pressure bearing that provides a new level of quietness and long-term stability.
Specification
| Size | 80x80x25 mm |
| Connector | 4-pin PWM |
| Bearing | SSO |
| Blade Geometry | Raised Blade Design |
| Frame Technology | Focused Flow™ |
| Rotational Speed (+/- 10%) | 1800 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 1300 RPM |
| Min. Rotational Speed (PWM) | 300 RPM |
| Airflow | 53,3 m³/h |
| Airflow with L.N.A. | 39,4 m³/h |
| Acoustical Noise | 17,1 dB(A) |
| Acoustical Noise with L.N.A. | 17,1 dB(A) |
| Static Pressure | 1,41 mm H2O |
| Static Pressure with L.N.A. | 0,74 mm H2O |
| Max. Input Power | 0,72 W |
| Max. Input Current | 0,06 A |
| Voltage | 12 V |
| MTBF | > 150.000 h |

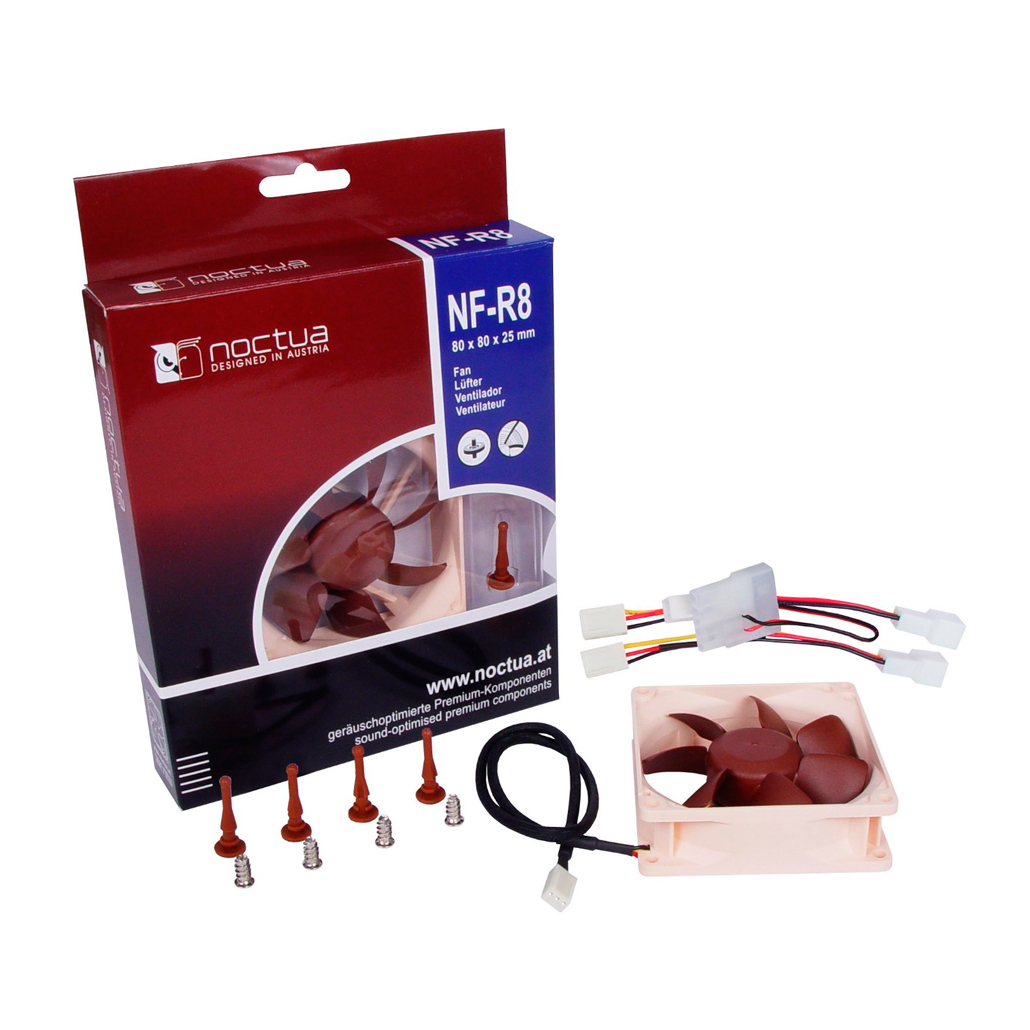

| Scope of Delivery |
|
| Warranty | 6 years |
