Noctua NH-C14P Cpu Cooler
Brand
Product Code
NH-C14P
Main Features
1366, 1156,LGA 775, AM2+/3, 2x Fan 14Cm
Noctua NH-C14P Cpu Cooler
The NH-C14 brings top-flow cooling to a new level by offering an exquisite, uniquely flexible 140mm dual fan setup: The two supplied NF-P14 premium fans can be installed on top and underneath the fin-stack to configure the cooler for maximum performance in dual fan mode and either lower profile (105mm) or maximum component clearance in single fan modes. Bundled with the award-winning NT-H1 thermal compound and Noctua’s SecuFirm2™ multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series.
C-Type top-flow design
The NH-C14’s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than today’s tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.

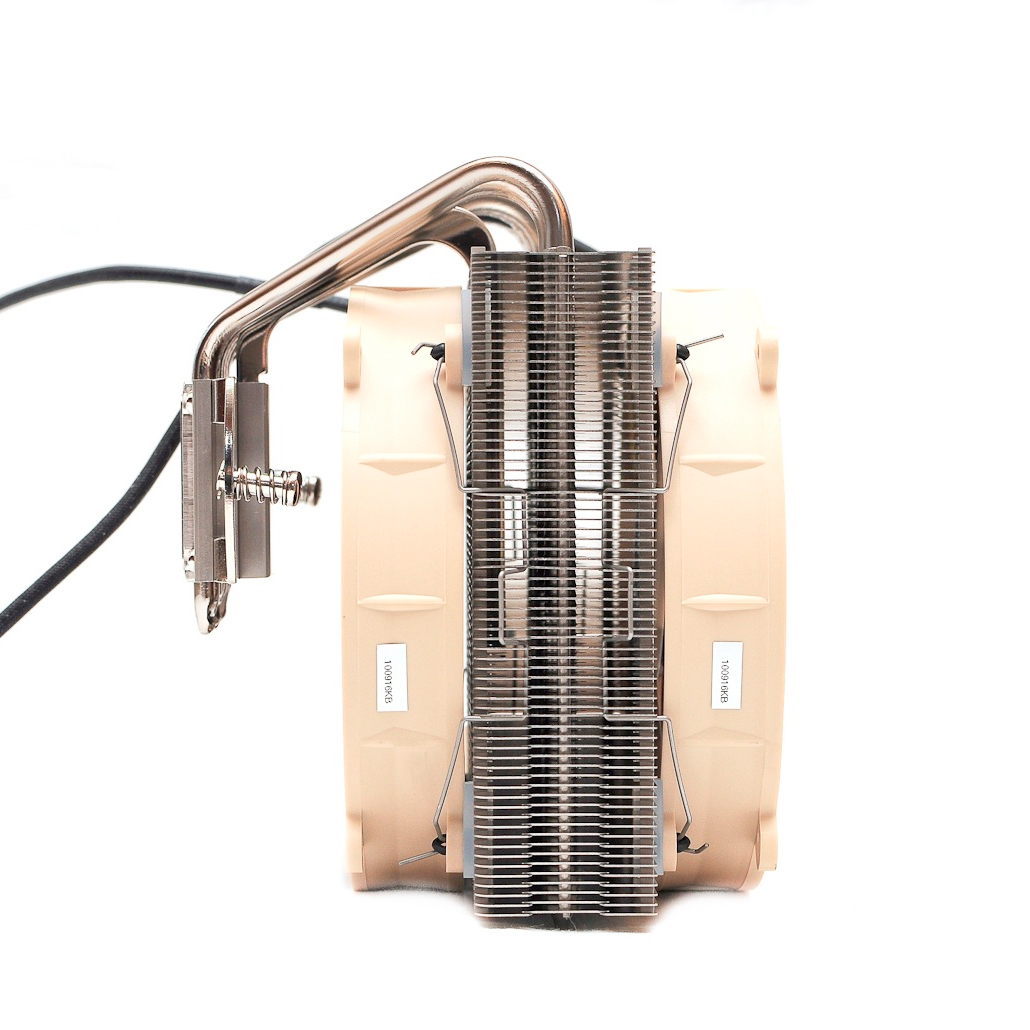

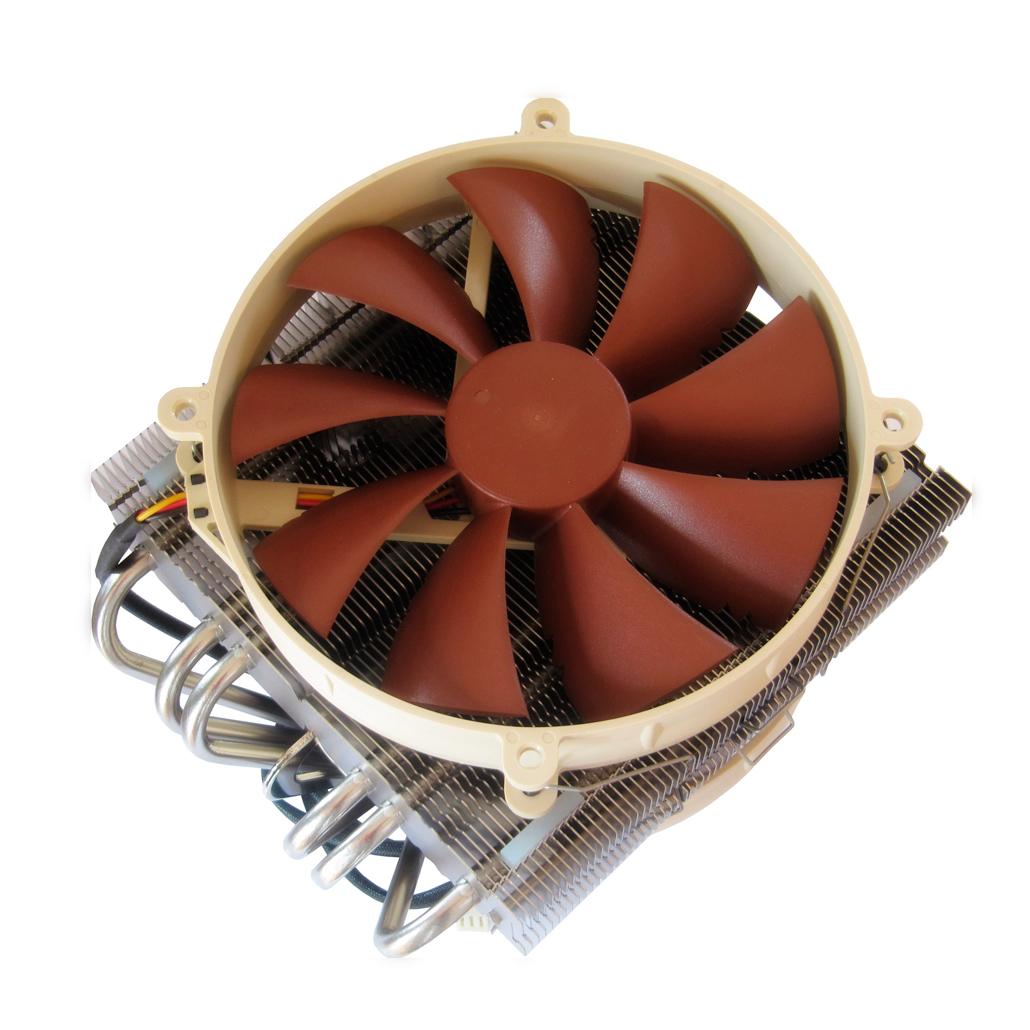

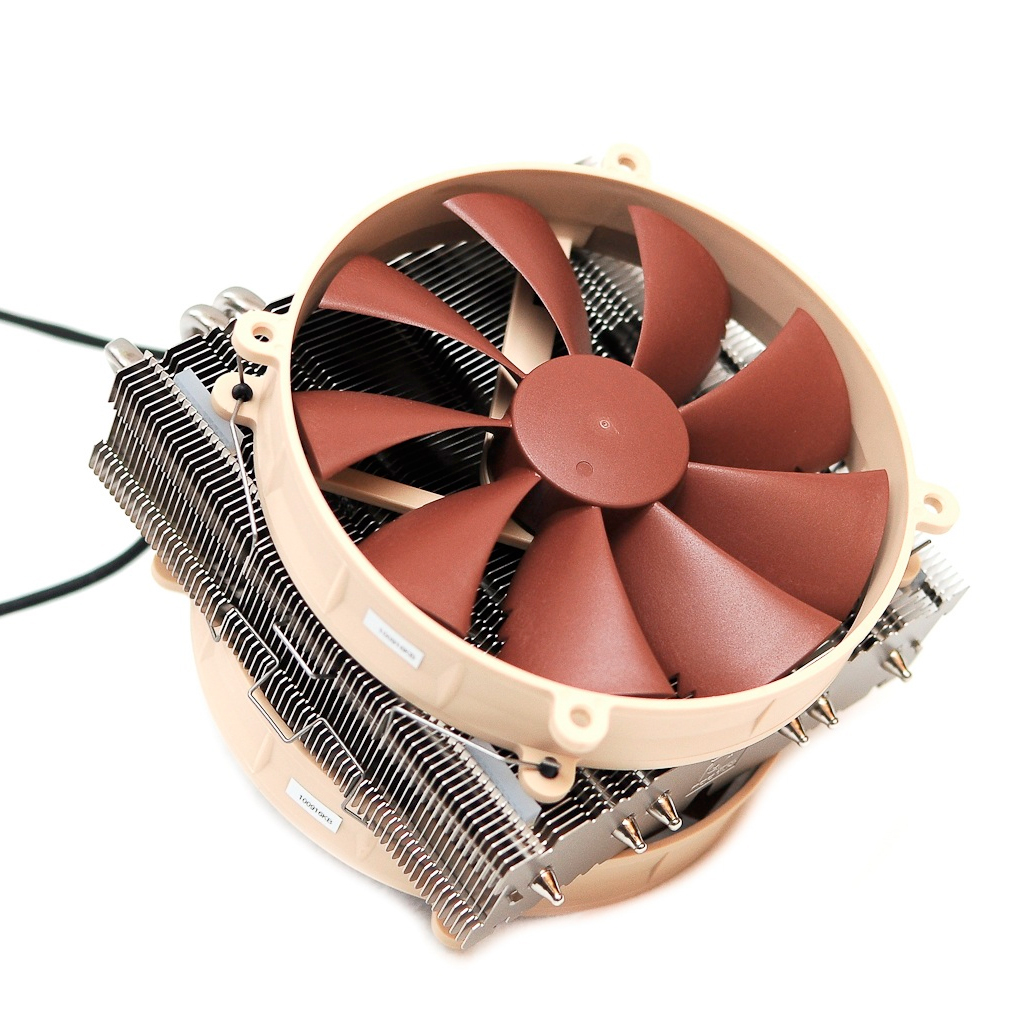

Dual NF-P14 FLX fans
The NH-C14 comes with two of Noctua’s award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the user’s needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).

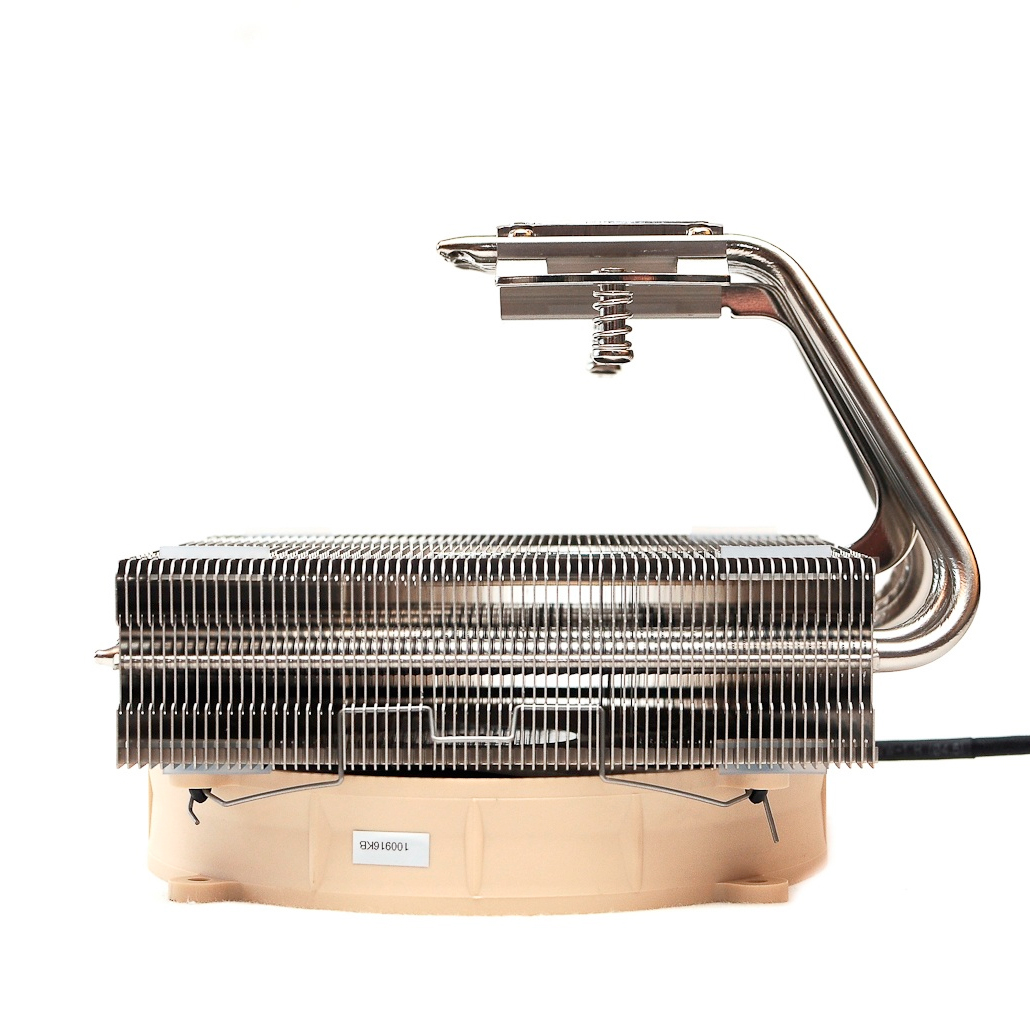

Low Profile Mode
Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.
High Clearance Mode
The lower NF-P14 fan can be removed in order to provide additional clearance for chipset coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
SecuFirm2™ multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA1150, LGA775, AM2, AM2+, AM3, AM3+, FM1, FM2) and meets the highest demands in safety, performance and ease-of-use.
Noctua NT-H1 high-end thermal compound
Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
| Socket compatibility | Intel LGA1366, LGA1156, LGA1155, LGA1150, LGA775, LGA2011 on request, Asus X-socket™& AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required) |
| Height (without fan) | 105 mm |
| Width (without fan) | 140 mm |
| Depth (without fan) | 166 mm |
| Height (with fan) | 130 mm |
| Width (with fan) | 140 mm |
| Depth (with fan) | 166 mm |
| Weight (without fan) | 700 g |
| Weight (with fan) | 850/1000* g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 140x140x25mm / 120x120x25mm |
| Scope of Delivery |
|
| Warranty | 6 Years |
| Fan specifications | |
| Model | Noctua NF-P14 |
| Bearing | SSO-Bearing |
| Rotational Speed (+/- 10%) | 1200 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 900 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 750 RPM |
| Airflow | 110,3 m³/h |
| Airflow with L.N.A. | 83,7 m³/h |
| Airflow with U.L.N.A. | 71,2 m³/h |
| Acoustical Noise | 19,6 dB(A) |
| Acoustical Noise with L.N.A. | 13,2 dB(A) |
| Acoustical Noise with U.L.N.A. | 10,1 dB(A) |
| Input Power | 1,2 W |
| Voltage Range | 12 V |
| MTBF | > 150.000 h |
