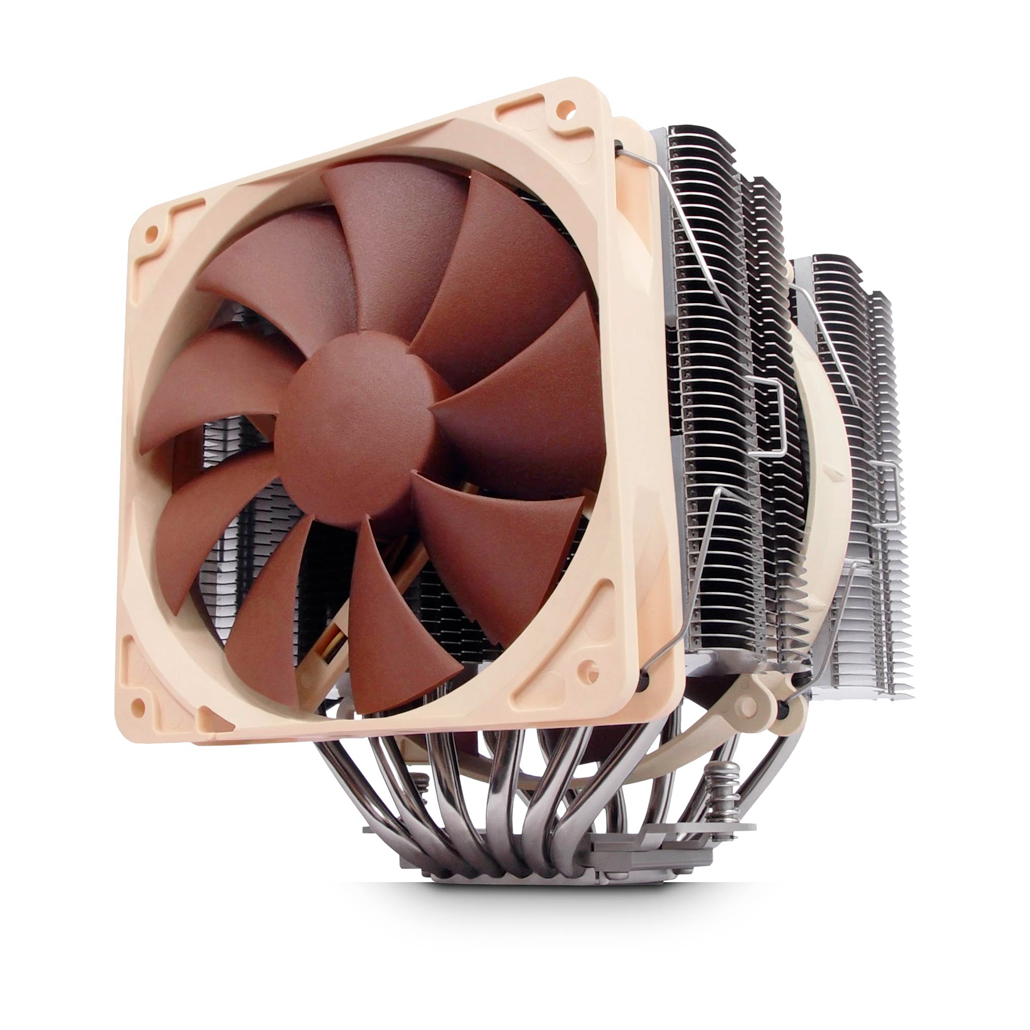

Noctua NH-D14 Cpu Cooler
Brand
Product Code
NH-D14
Main Features
1366, 1156,LGA 775, AM2+/3, Fan 14Cm + 12CM
Noctua NH-D14 Cpu Cooler
Combining a massive six heatpipe dual radiator design with an exquisite NF-P14/NF-P12 dual fan configuration, the NH-D14 is built for ultimate quiet cooling performance. Topped off with a tube of Noctua’s award-winning NT-H1 thermal compound as well as the new SecuFirm2™ multi-socket mounting system, the NH-D14 is an elite choice for the highest demands in premium quality quiet cooling.
6 heatpipe dual radiator design
Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14’s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.
NH-D14 Dual NF-P14/NF-P12 fan setup
The NH-D14 sports a premium quality dual fan setup consisting of Noctua’s award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.
NH-D14 Asymmetrical design for high compatibility
An asymmetrical design that gives more clearance towards the RAM slots ensures good compatibility despite of the cooler’s size. The NF-P12 fan can be moved upwards or left off in order to further improve compatibility.
NH-D14 Excellent component cooling
Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn’t only contribute to the NH-D14’s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
SecuFirm SecuFirm2™ multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA1150, LGA775, AM2, AM2+, AM3, AM3+, FM1, FM2) and meets the highest demands in safety, contact pressure and ease-of-use.
NT-H1 NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
| Socket compatibility | Intel LGA1366, LGA1156, LGA1155, LGA1150, LGA775, LGA2011 on request, Asus X-socket™& AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required) |
| Height (without fan) | 160 mm |
| Width (without fan) | 140 mm |
| Depth (without fan) | 130 mm |
| Height (with fan) | 160 mm |
| Width (with fan) | 140 mm |
| Depth (with fan) | 158 mm |
| Weight (without fan) | 900 g |
| Weight (with fan) | 1070/1240* g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 140x140x25 & 120x120x25mm |
| Scope of Delivery |
|
| Warranty | 6 Years |
| Fan specifications | |
| Model | Noctua NF-P14 & Noctua NF-P12 |
| Bearing | SSO-Bearing |
| Rotational Speed (+/- 10%) | 1200 / 1300 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 900 / 900 RPM |
| Airflow | 110,3 / 92,3 m³/h |
| Airflow with U.L.N.A. | 83,7 / 63,4 m³/h |
| Acoustical Noise | 19,6 / 19,8 dB(A) |
| Acoustical Noise with U.L.N.A. | 13,2 / 12,6 dB(A) |
| Input Power | 1,2 / 1,08 W |
| Voltage Range | 12 V |
| MTBF | > 150.000 h |
