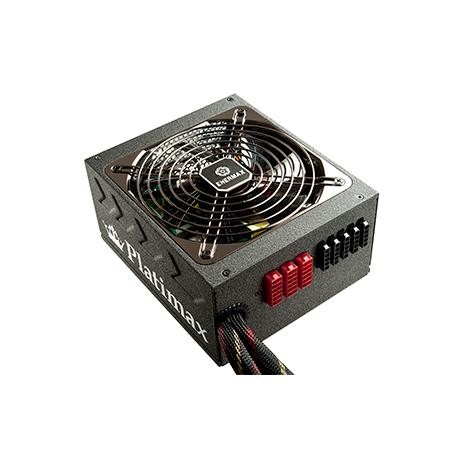

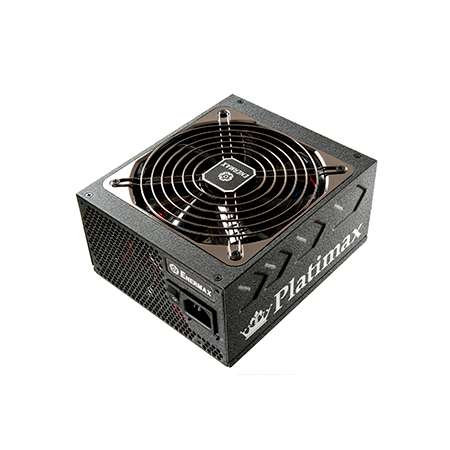

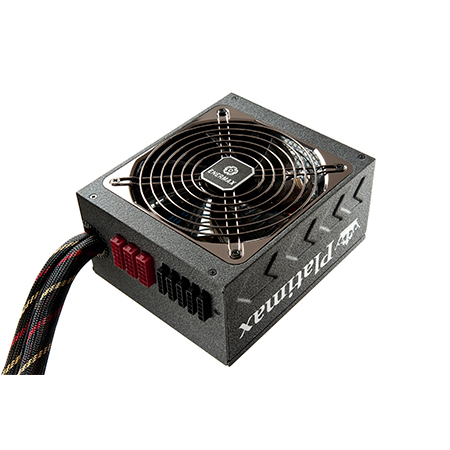

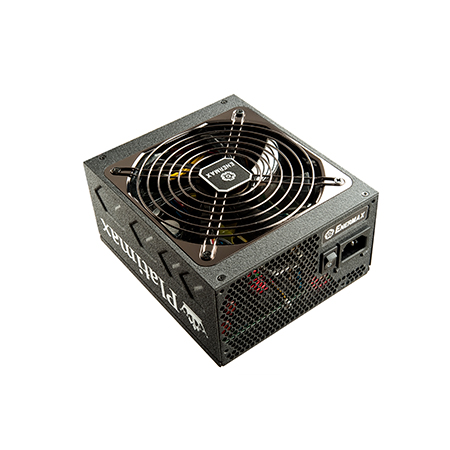

Enermax Platimax 80+ 1000W
Brand
Kode Produk
EPM1000EWT
Data Produk
Platimax 80+ EPM1000EWT
Deskripsi
ENERMAX Platimax 80+ 1000W
| 89PLUS ready! | World’s leading full modular cables PSU series with 89-94% efficiency @20-100% load. Compliant with 80 PLUS Platinum standard. |
| ErP Lot 6 ready | Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency +5Vsb circuitry. (With ErP Lot 6 enabled motherboard.) |
| High compatibility ready! | Single rail +12V output highly compatible with various types of high-end graphics card at full-load operation. |
| World ready! | 100-240VAC in with automatic adjustment and active PFC for global usage. |
| 24/7 @ 50oC ready! | Non-Stop industrial class performance at 50°C ambient. |
| C6 & Hybrid ready! | Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD design. |
| DXXI ready! | 100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards. |
| Future ready! | 12P modular design for possible upcoming new CPU and GPU 10P and/or 12 connectors. |
| SERVER ready! | SSI PSDG support for latest Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8. |
| CordGuard | CordGuard Fixing the AC cord tightly to avoid accidental shutdowns of your PC. |
| HeatGuard | Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime. |
| SafeGuard | Advanced multiple protection circuitries of OCP, OVP, DC UVP, AC UVP, OPP, OTP , SCP & SIP protects your system. |
| SpeedGuard | The world’s leading patented fan control starting with unmatched 600RPM to a maximum of 1500RPM for optimal cooling and minimum noise. |
| Twister fan inside! | 13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented Twister Bearing Technology) |
| 100% 105°C Japanese electrolytic capacitors | Highest components standards for maximum durability and stability |
| Dynamic Hybrid Transformer Technology | echnological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load. |
Detail
| EPM1000EWT | |||
| AC Input Voltage | 115–240VAC, 50–60Hz (Maximum range: 103–264VAC, 47–63Hz) | ||
| AC Input Current | 10.5–4.5A | ||
| DC Output | |||
| Rated | Combined | ||
| 3.3V | 0–20A | 100W | |
| 5V | 0–20A | ||
| 12V | 0–83A | 996W | |
| -12V | 0–0.5A | 6W | |
| 5Vsb | 0–3A | 15W | |
| Total Power | 1000W | ||
| Peak Power* | 1100W | ||
| Protection Circuit | |||
| Over Current Protection | DC Rail | OCP trigger range | |
| 3.3V | 30 – 40A | ||
| 5V | 30 – 40A | ||
| (DC) Under Voltage / Over Voltage Protection | DC Rail | UVP trigger range | OVP trigger range |
| 3.3V | 2.0 – 2.4V | 3.9 – 4.5V | |
| 5V | 3.3 – 3.7V | 5.7 – 6.5V | |
| 12V | 8.5 – 9.5V | 13.3 – 14.5V | |
| Over Power Protection | Activated when output power > 120 ~ 150% of rated max load. | ||
| Over Temperature Protection | Activated when PSU heat sink > 90 ~ 120oC. | ||
| Short Circuit Protection | Activated when any DC rails short-circuited. | ||
| Surge & Inrush Protection | Sustain 2KV surge stroke. Sustain up to 100A inrush current @ 240VAC at cold start. | ||
| ENVIRONMENT | |||
| Temperature | Operation ambient: 0~50oC Storage ambient: -40~70oC | ||
| Humidity | Operation: to 85% relative humidity, non-condensing at 25oC Storage: to 95% relative humidity, non-condensing at 50oC | ||
| OTHERS | |||
| MTBF | > 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25oC (MIL-HDBK-217F standard) | ||
| Dimension | 150 (w) x 86 (h) x 175 (d) mm | ||
| Weight | 2.25kg (without modular cables)±50g | ||
| Safety | UL/cUL(Level 6), TUV, GOST, CB, BSMI | ||
| EMC | CE, FCC, KCC | ||
