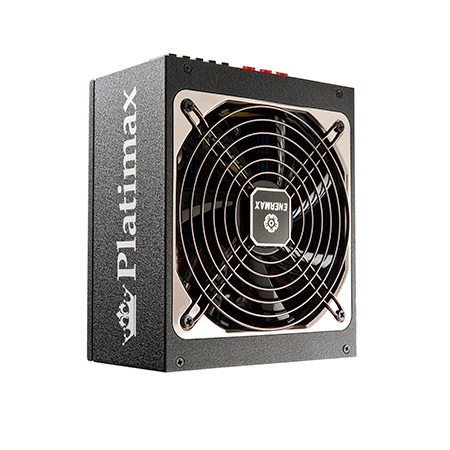

ENERMAX Platimax 80+ 750W

Brand
Kode Produk
EPM750EWT
Data Produk
Platimax 80+ EPM750EWT

Deskripsi

ENERMAX Platimax 80+ 750W

89PLUS ready!	World’s leading full modular cables PSU series with 89-94% efficiency @20-100% load. Compliant with 80 PLUS Platinum standard.
ErP Lot 6 ready	Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency +5Vsb circuitry. (With ErP Lot 6 enabled motherboard.)
C6 & Hybrid ready!	Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD Design.
DXXI ready!	100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
Future ready!	12P modular design for possible upcoming new CPU and GPU 10P and/or 12 connectors.
Gaming ready!	ATX12V v2.3 support for latest Intel Core™ 2 Duo/Quad/Extreme/i7/i5, and AMD Athlon™ 64X2 & Phenom™ II and SLI or CrossFireX™.
World ready!	100-240VAC in with automatic adjustment and active PFC for global usage.
24/7 @ 50°C ready!	Non-Stop industrial class performance at 50°C ambient.
EMC ready!	Full-scale electromagnetic filtering protects your system against radiation interferences.
CordGuard	CordGuard Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
HeatGuard	Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
SafeGuard	Advanced multiple protection circuitries of OCP, OVP, DC UVP, AC UVP, OPP, OTP , SCP & SIP protects your system.
SpeedGuard	The world’s leading patented fan control starting with unmatched 600RPM to a maximum of 1500RPM for optimal cooling and minimum noise.
Twister fan inside!	13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented Twister Bearing Technology)
100% 105°C Japanese electrolytic capacitors	Highest components standards for maximum durability and stability
Dynamic Hybrid Transformer Topology	Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.

Detail

EPM600EWT		EPM750EWT		EPM850EWT
AC Input Voltage	100–240VAC, 50–60Hz (Maximum range: 90–265VAC, 47–63Hz)
AC Input Current	8 – 3.5A		9 – 4.5A		11 – 5A
DC Output
	Rated	Combined	Rated	Combined	Rated	Combined
3.3V	0–20A	100W	0–24A	120W	0–24A	120W
5V	0–20A		0–24A		0–24A
12V1	0–25A	600W (50A)	0–25A	744W (62A)	0–30A	840W (70A)
12V2	0–25A		0–25A		0–30A
12V3	0–25A		0–25A		0–30A
12V4	–	–	0–25A		0–30A
-12V	0–0.5A	6W	0–0.5A	6W	0–0.5A	6W
5Vsb	0–2.5A	12.5W	0–3A	15W	0–3A	15W
Total Power	600W		750W		850W
Peak Power*	660W		825W		935W
Protection Circuit
Over Current Protection	DC Rail	OCP trigger range
	3.3V	30 – 40A
	5V	30 – 40A
	12V	30 – 40A (EPM600AWT); 35 – 45A (EPM750AWT / EPM850EWT)
Over Voltage Protection	DC Rail	OVP trigger range
	3.3V	3.7 – 4.1V
	5V	5.7 – 6.5V
	12V	13.1 – 14.5V
(DC) Under Voltage Protection	DC Rail	UVP trigger range
	3.3V	2.0 – 2.4V
	5V	3.3 – 3.7V
	12V	8.5 – 9.5V
Over Power Protection		Activated when output power > 120 ~ 150% of rated max load.
Over Temperature Protection		Activated when PSU heat sink > 90 ~ 120 ^oC.
Short Circuit Protection		Activated when any DC rails short-circuited.
ENVIRONMENT
Temperature		Operation ambient: 0 ~ 50 ^oC (for full rated output) Storage ambient: -40^oC ~ 70^oC
Humidity		Operation: to 85% relative humidity, non-condensing Storage: to 95% relative humidity, non-condensing
OTHERS
Cooling		One 13.9cm twister bearing fan, speed auto controlled
MTBF		> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25 ^oC (MIL-HDBK-217F standard)
Dimension		150(w) x 86(h) x 160(d) mm (EPM600AWT) 150(w) x 86(h) x 175(d) mm (EPM750AWT / EPM850EWT)
Weight		2kg (without modular cables)±50g (EPM600AWT) 2.9kg(without modular cables)±50g (EPM750AWT / EPM850EWT)
Safety		UL/cUL(Level 6), TUV, GOST, CB, BSMI
EMC		CE, FCC, KCC
