Enermax Cluster 12cm
Brand
Kode Produk
Cluster
Data Produk
Enermax Cluster
Deskripsi
Enermax Cluster 12cm
Twister Bearing technology for long lifetime and low noise
Batwing Blades design and Carved Halo Frame for extra 20~30% airflow
PWM speed control to keep your system silent and cool all the time
Patented Modular Frame with aluminum ring for enhanced stability of structure

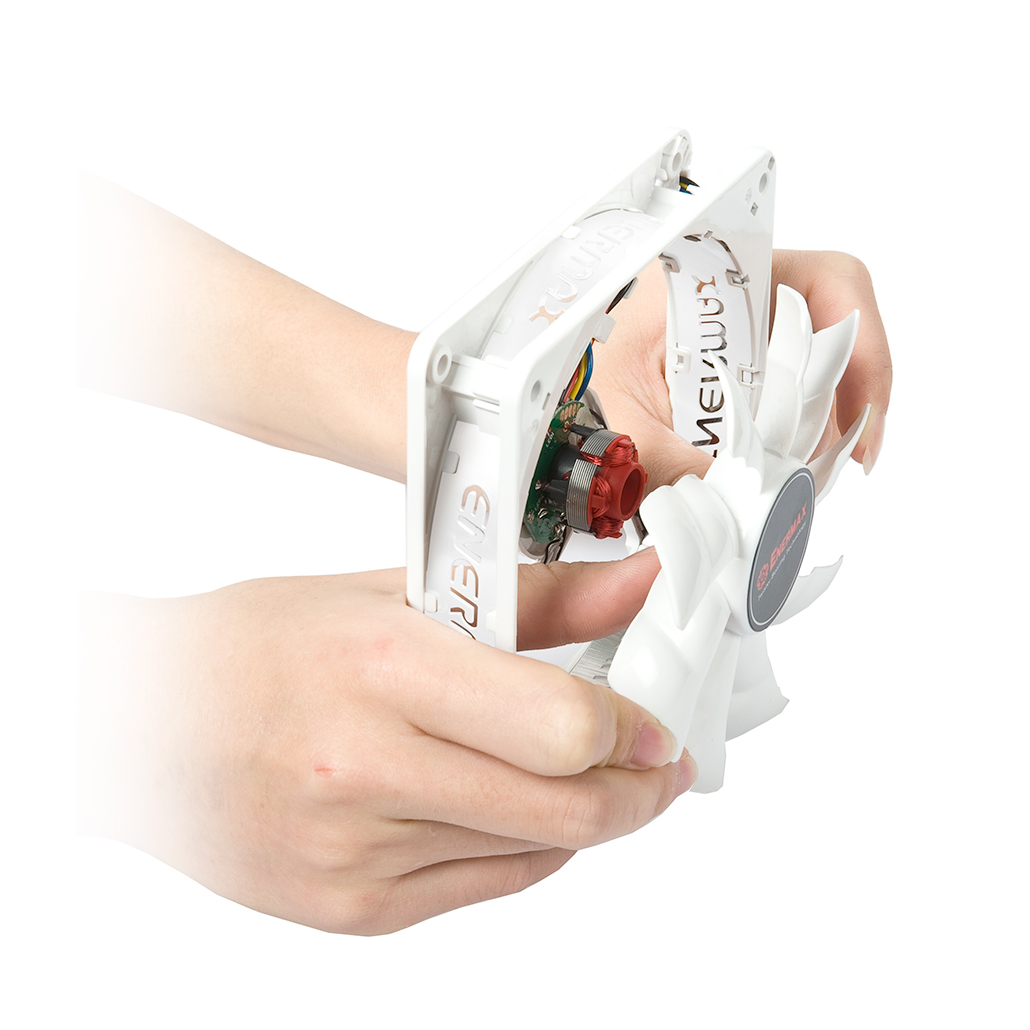

Detachable fan blades for easy cleaning
Isolator-mounts for shockproof and easy installation
White lightning LED on/off
Detail
| Model | UCCL8 | UCCL9 | UCCL12 | UCCL14 | |
| Dimension (mm) | 82 x 82 x 25 | 92 x 92 x 25 | 120 x 120 x 25 | 139 x 139 x 25 | |
| Function | PWM Technology | ||||
| Bearing Type | Twister Bearing | ||||
| Blades | Batwing Blades | ||||
| Blades Number | 7 | 7 | 9 | 9 | |
| Noise (dBA) | 8 – 19 | 8 – 19 | 8 – 14 | 8 – 17 | |
| Speed (RPM) | 500 – 2000 (±10%) | 500 – 2000 (±10%) | 500 – 1200 (±10%) | 600 – 1400 (±10%) | |
| Air Flow (MAX) | (CFM) | 11.32 – 32.40 | 13.23 – 38.30 | 26.51 – 53.02 | 39.48 – 86.07 |
| (m3/h) | 19.23 – 55.05 | 22.48 – 65.07 | 45.04 – 90.08 | 67.08 – 146.23 | |
| Air Pressure (mm-H2O) | 0.517 – 1.800 | 0.512 – 1.795 | 0.483 – 1.073 | 0.691 – 1.537 | |
| MTBF (hour) | 100,000 | ||||
| LED | White with on/off function | ||||
| Input Power (W) | 3 | 3 | 4.8 | 3.6 | |
| Rated Voltage (V) | 12 | 12 | 12 | 12 | |
| Safety & EMC | CE, ROHS, WEEE | ||||
