ENERMAX REVOLUTION XT 630W

Efficiency

• 80 PLUS® Gold
  Up to 92 percent efficiency at 230V and 20 to 100 percent load. 80 PLUS® Gold certified.
• ErP Lot 6 2013 ready!
  Help systems to meet the latest EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry. *only in combination with an ErP Lot 6 2013 ready mainboard
• DC-to-DC Design
  The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efficiency, clean output voltages (low ripple & noise) and a perfect voltage regulation at all loads.

Power

• Full GPU & CPU Power
  Massive 12V rail to power high-performance and overclocked processors and graphics cards. More than 97 percent of the total power of the PSU can be delivered by the 12V rail only.
• Full Gaming Power
  Min. two 6+2P (8P) PCI-E connectors to power the latest high-end graphics cards and multi-GPU systems (CrossfireX™ & SLI™).

Connectivity & Compatibility

• Modular & Flat Cables
  Simplify the cable routing and enhance the airflow inside the case.
• Intel® Haswell™ Ready!
  Supports the C6/C7 energy-saving functions of the latest Intel® CPUs incl. the forthcoming Intel® Haswell™ generation.
• Intel ATX 12V v2.4
  Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.
• Worldwide Compatibility
  100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Cooling

• Air Cooling by Enermax
  Integrated 13.9cm fan with patented Twister Bearing Technology ensures efficient and ultra silent cooling and long lifetime.
• SpeedGuard
  Ultra silent and powerful cooling performance due to an advanced and intelligent fan speed control.
• HeatGuard
  Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging the system’s lifetime.

Quality & Safety

• High-quality Japanese Main Capacitors
  Highest component standards for maximum stability and durability.
• Non-Stop 24/7 @ 40°C
  Non-stop industrial class performance at 40°C/104°F ambient.
• SafeGuard
  Multiple protection circuitry of OVP, OTP, OPP, SCP and SIP.
• CordGuard
  Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Dimensions & Warranty

• Compact, Scratch-resistant Housing
  Dimensions: 150 mm x 86 mm x 160 mm (W x H x D)
• Warranty
  5 years vendor warranty

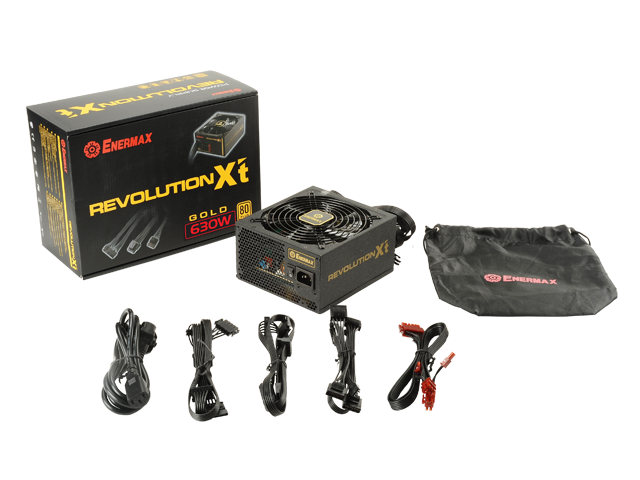

Included in the delivery

• Revolution X’t power supply
• AC cord
• CordGuard
• Modular cables
• Bag for modular cables
• Cable ties
• 4 screws
• User Manual
